29
USING THE REMOTE COLOR VIEWER

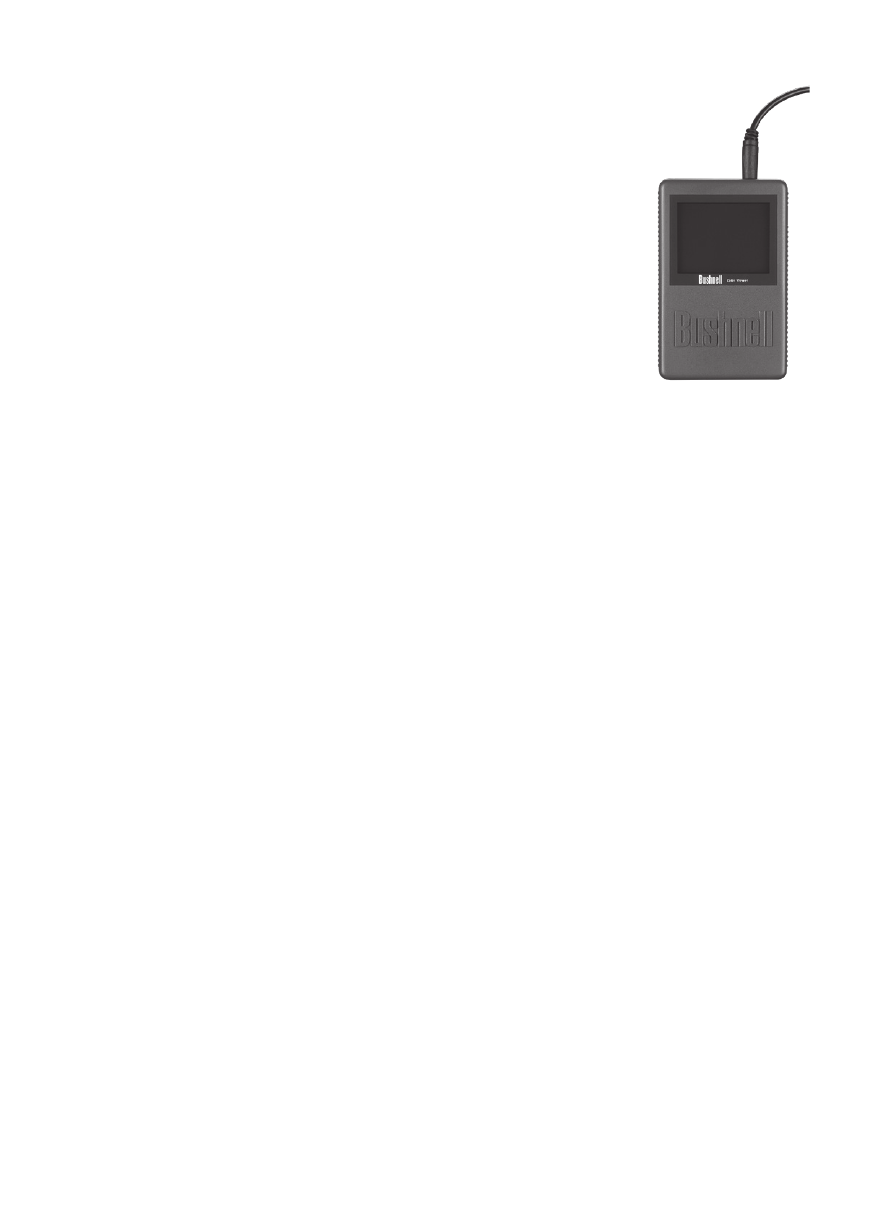

Your NatureView HD Cam includes a handheld remote
Color Viewer, which can be used to view the live image from
the lens, ensuring that the camera has been positioned
and aimed correctly so that your intended subject will be
captured.
The Viewer will also display the menu settings during the
setup process, and can be used in the field to review
photos/videos that have been stored on the SD card.
Before using the Viewer:
• Slide open the battery compartment on the back of the Viewer and
install 2 x AA batteries (alkaline or lithium-do not mix types), with the
flat (-) end of each battery in contact with the springs. Slide the battery
compartment cover back into place.
• Connect the provided cable between the jack on top of the Viewer and
the “Viewer” jack on the camera (next to the SD card slot. Switch the
camera to “SETUP”.
• If the Viewer display does not activate, press the power button on the
top right side of the Viewer. To turn off the Viewer, press the power
button again.
To check final camera aim/position with the Viewer:
To view the live image after the camera has been set to “ON”, and mounted
in place with the control panel closed and latched, simply plug the cable
from the top of the Viewer into the exposed “Viewer” jack on the bottom of
the camera. If the Viewer is powered on, it should display the image from the
lens. Aim the camera while monitoring the Viewer so that it is in position to
capture the desired subject or area. When finished, disconnect the Viewer
by pulling the cable out of the “Viewer” jack, and the camera will begin to
capture images.
Using the Viewer in Camera Setup Mode:
For convenience, the Viewer may be attached to the inside of the camera’s
battery compartment for hands free operation. Line up the round peg on the
back of the Viewer with the large hole in the slot at the bottom of the battery
compartment, then slide the Viewer to the left to secure it in place. To remove
