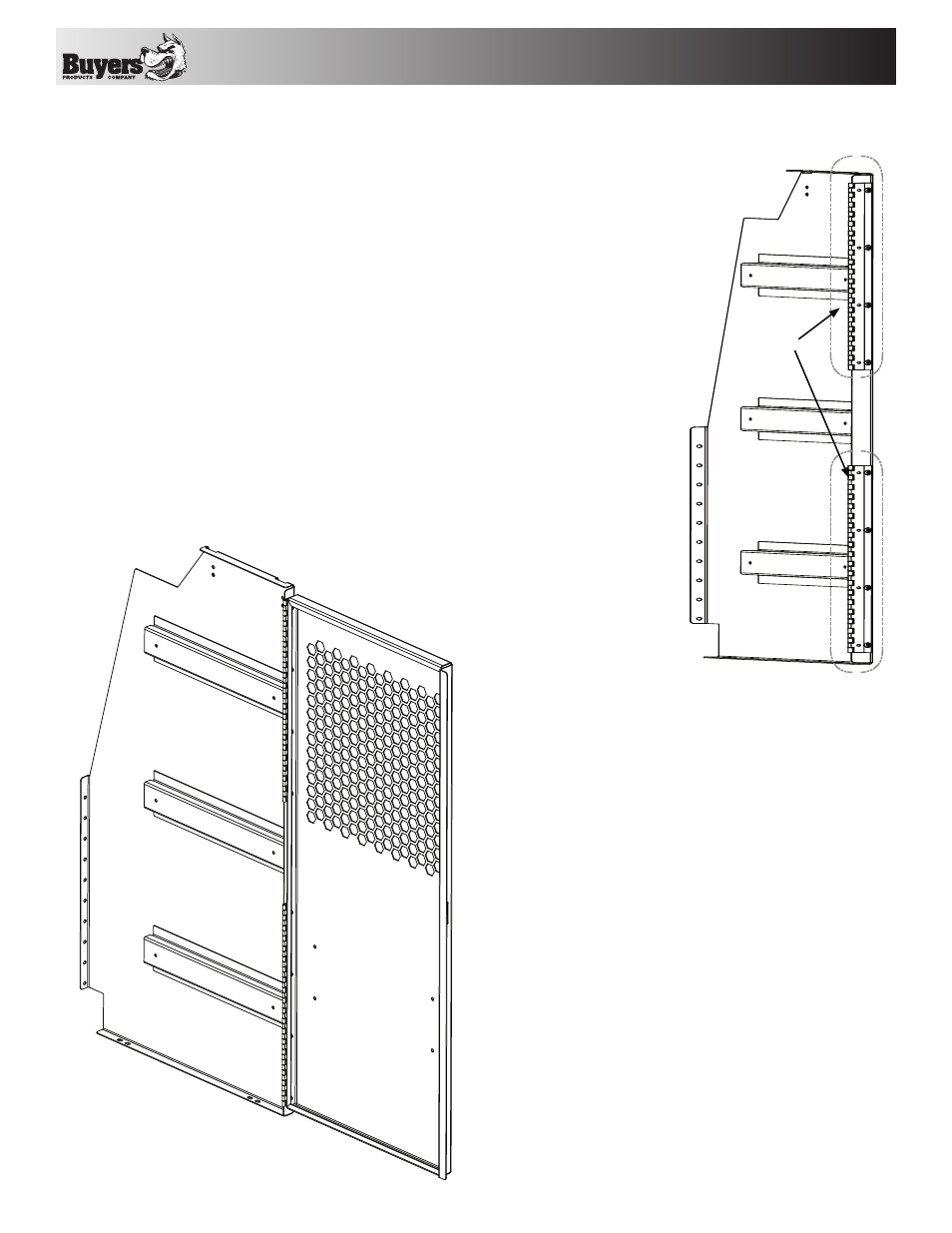

Figure 1H

#5412010

Note: The following instructions are for the installation of the optional

hinge and lock hardware kit #5412010 used with the van partition #5412000.

Step 1: Assemble the two hinges #3015237 to the driver-side partition
panel #3018633, using the following hardware:

(8) 1/4"-20 x 1/2" Button Head Screws

(8) 1/4"-20 Lock Nuts
Hardware should be connected through the slots on the hinge and the

large holes provided on the driver-side panel #3018633 of the van partition.
The knuckles of the hinge should be facing the back side of the panel.

Fasten screws with the button heads on the hinge side of the assembly.

See Figure 1H.

5412010 Optional Hinge and Lock Hardware Kit
Installation Instructions

Figure 2H

Step 2: Assemble the center panel #3018244
to the assembled hinges using the following

hardware:

(8) #10-24 1/4" Button Head Screws

(8) #10-24 Lock Nuts
Insert lock nuts from the back side of the assembly.

Insert screws from the hinge side into the door

panel #3018244. Assemble the hinges from inside

the door.
Note: The door will sit 1" higher than the drivers

side panel. This is to ensure that the door will

clear the floor when opened.

#3018244
