AL8400/ AL8400Q
Document number: DS35115 Rev. 4 - 2
12 of 13
www.diodes.com
August 2012
© Diodes Incorporated
AL8400 /AL8400Q

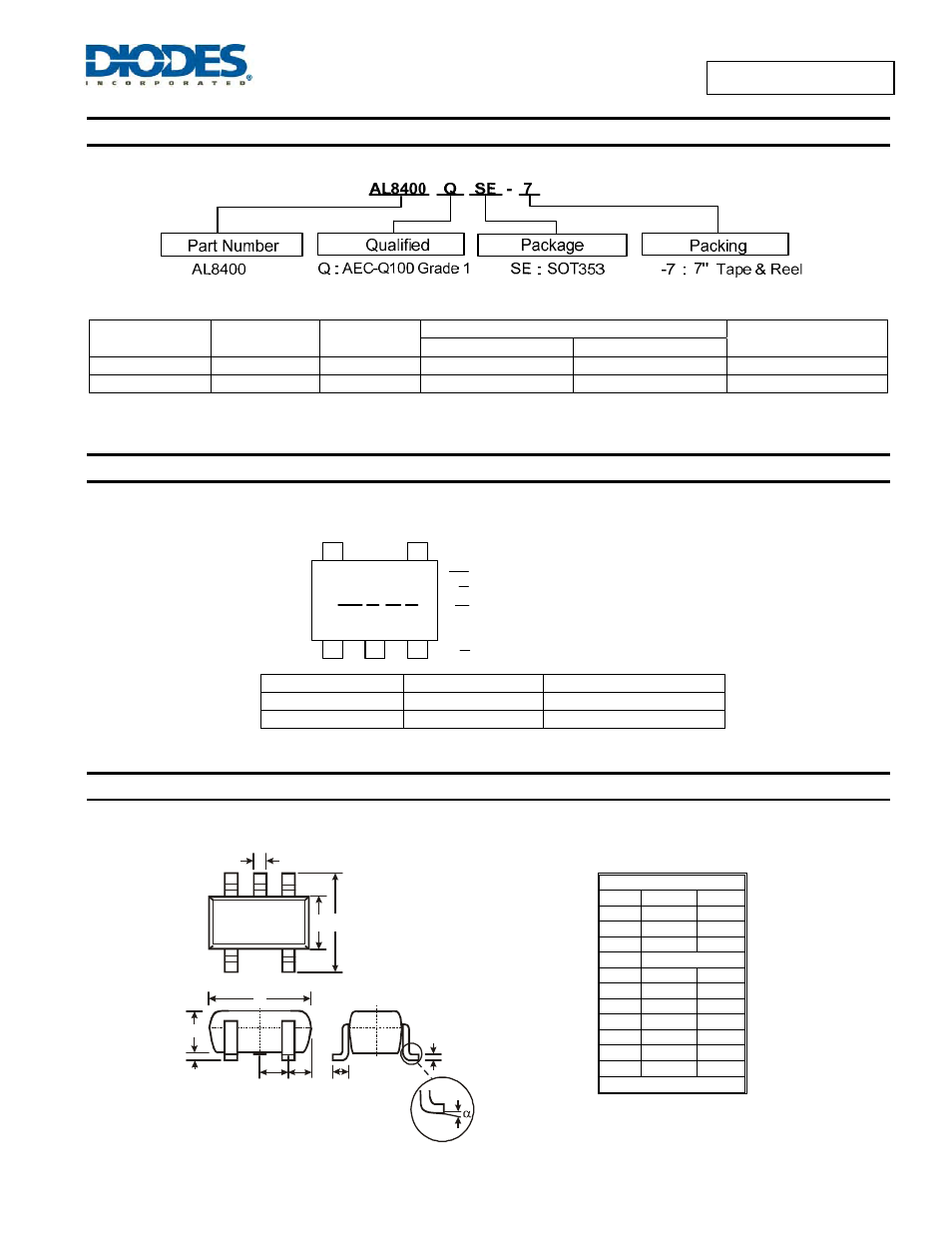

Ordering Information
Part Number Package Code Packaging
7” Tape and Reel
Automotive Grade
Quantity Part Number Suffix
AL8400QSE-7 SE SOT353 3000/Tape & Reel -7 Y (Note 5)
AL8400SE-7 SE SOT353 3000/Tape & Reel -7 -
Note: 5. Qualified to AEC-Q100 Grade 1.
Marking Information
(1) SOT353
1 2 3
5 7 4
XX Y W X
( Top View )
XX : Identification code
W : Week : A~Z : 1~26 week;
X : A~Z : Green
Y : Year 0~9
a~z : 27~52 week; z represents
52 and 53 week
Part Number Package Identification Code
AL8400SE-7 SOT353 B4
AL8400QSE-7 SOT353 B4
Package Outline Dimensions
(All dimensions in mm.)
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
SOT353
Dim Min Max
A 0.10 0.30
B 1.15 1.35
C 2.00 2.20
D 0.65 Typ
F 0.40 0.45
H 1.80 2.20
J 0 0.10
K 0.90 1.00
L 0.25 0.40
M 0.10 0.22
α 0° 8°
All Dimensions in mm
A
M
J
L D
B C
H
K
F
