SV Series – Survive-All
2/4
Emergi-Lite
Tel: (888) 552-6467 Fax: (800) 316-4515 www.emergi-lite.com 10/13 750.1518 Rev. B
c. Remove AC harness from electronic module. Wire to AC circuit
wires using wire nuts (see figure 2). Refer to hookup instructions
on page 2.
d. Install the gasket on the back plate. Feed AC harness and the
ground through the large hole in the backplate (see figure 2).
Mount to J-box using the J-box screws (not provided). J-box
should be properly secured directly to a stud.
Note: When back mounting the unit on uneven surface such as
brick, silicone caulk should be used to prevent water from seeping in
between the unit and the J-box.
Wall mounting with conduit
a. Remove k’out on top of the backplate for conduit entry and key
hole k’out to fix the backplate to the wall. For Nexus wired option,
install the two holes liquid tight fitting, provided with the unit, on
the bottom of the back plate. Don’t route data cables with AC
wires.
b. Install a liquid tight conduit fitting on the backplate. Conduit size:
1/2” NPT (not provided).
c. Install the unit on the wall using screws (not provided).
d. Connect the conduit to fitting and route unswitched AC circuit
wires in the unit.
e. Remove AC harness from electronic module. Wire to AC circuit
wires using wire nuts. Refer to hookup instructions..
Pole or I-beam mounting (Option)
a. Universal bracket (part 16 on figure 4) is an accessory and needs
to be ordered separately. Remove knockouts on top of the back-
plate for conduit entry.
b. Install a liquidtight conduit fitting on the backplate. Conduit size:
1/2” NPT.
c. Install the universal bracket as shown in figure 4. Don’t install the
gasket (9). Note: this type of installation is not NSF certified for
food processing areas.
d. Unit can be installed using steel banding for routing around the
poles and I-beam. Standard banding ¾" in width or less can be
used (not provided). It can also be mounted on Superstrut®
metal framing (1 5/8" channel series) using 1/4" bolt (not pro-
vided). Holes are placed at 9" apart horizontally.
e. Connect the conduit to fitting and route unswitched AC circuit
wires in the unit.
f. Remove AC harness from electronic module. Wire to AC circuit
wires using wire nuts.Refer to hookup instructions.
6. Complete electrical connection:
Standard product:
a. Re-install batteries and electronic module as shown on figure 5.
See figure 6 for batteries wiring diagram.
b. Connect transformer harness to AC harness.
Cold weather option:
a. Connect battery heater (18) to thermostat (19) and to AC harness
(10) (see figure 7).
- 120 VAC OPERATION -
White wire - Common
Black wire - 120V Line
Green wire - Ground
-277 VAC OPERATION-
White wire - Common
Orange wire - 277V Line
Green wire - Ground
INSTRUCTIONS - HOOKUP
Unused primary wire must be insulated to prevent shorting

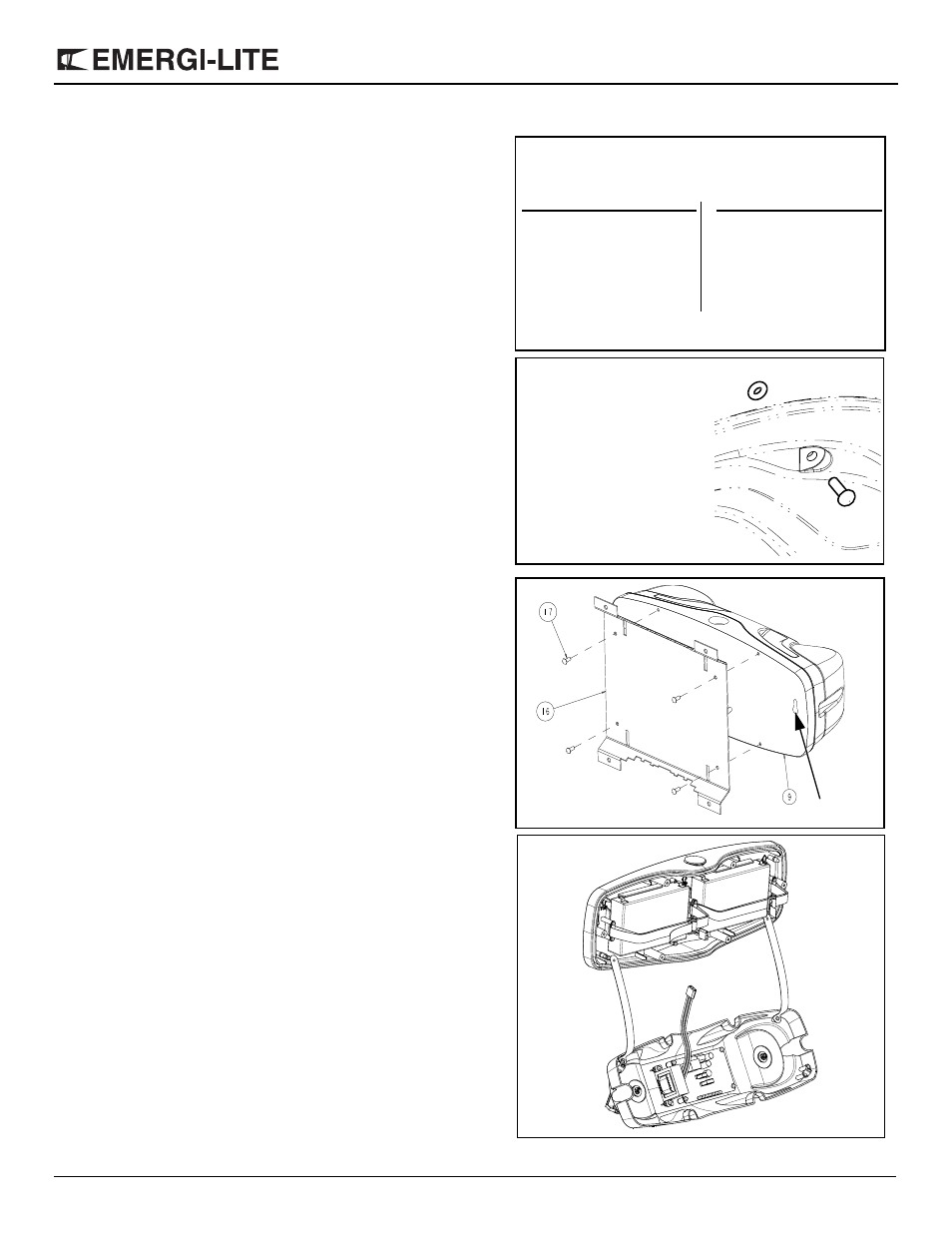

Figure 4 key-hole
Figure 5
Figure 3
To ensure watertightness:
install the screw gaskets
inside the unit, as shown.
Put the screw in the lens
hole and than install the
screw gasket.
