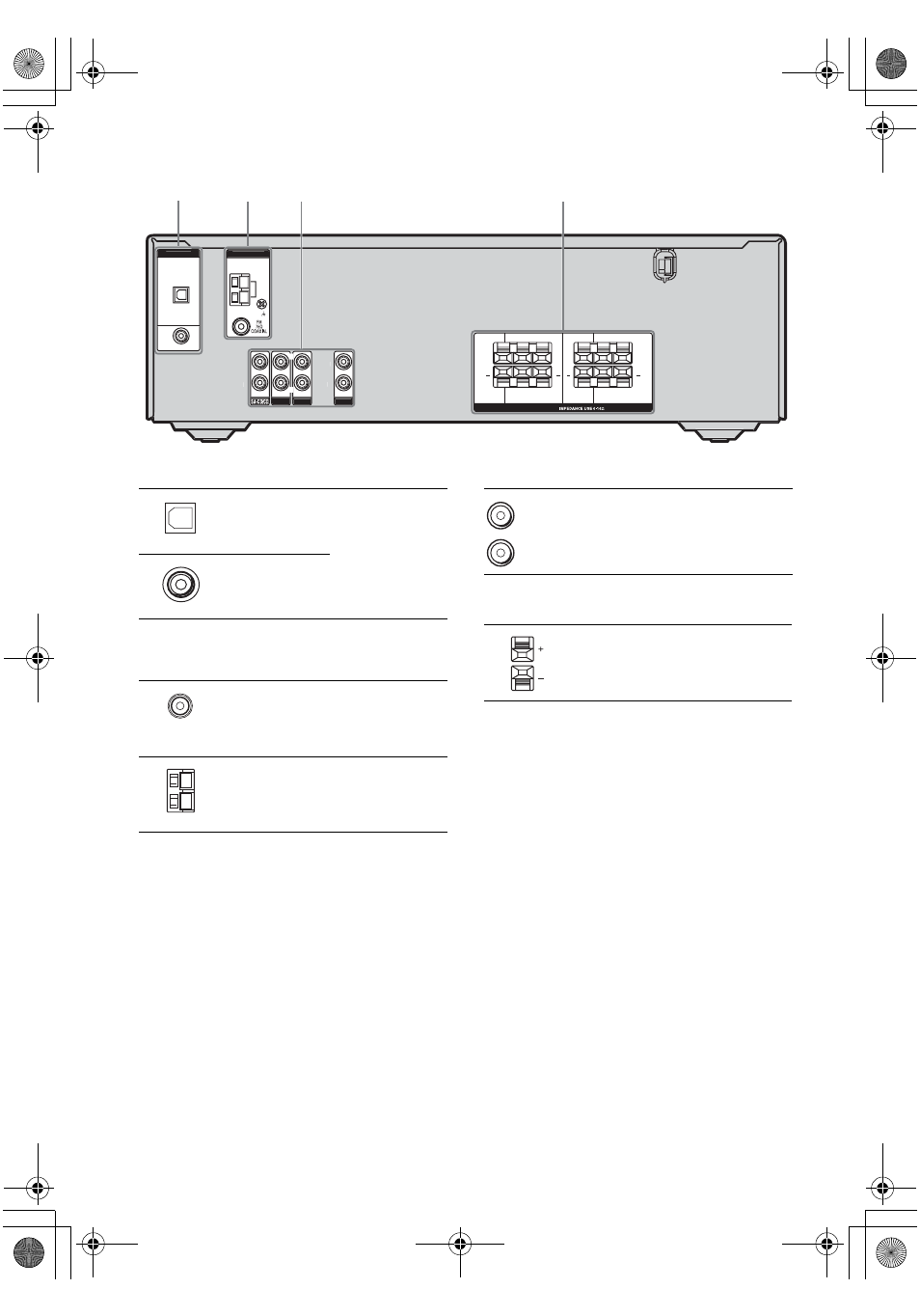

Rear panel
SUB
WOOFER
SURROUND
DVD IN
SPEAKERS
S
AUDIO IN
DVD
AUDIO IN
VIDEO 2
AUDIO IN
VIDEO 1
AUDIO IN
L
R
L
R
+
+
DIGITAL
OPTICAL
VIDEO 2
IN
COAXIAL
AM
ANTENNA
CENTER
FRONT
L
R
L
R
+
+
R
R
L
L
L
R
1
3
3
4
4
2
A DIGITAL INPUT section
OPTICAL
IN jack
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound (page 17).
COAXIAL IN
jack
B ANTENNA section
FM
ANTENNA
Connects to the
FM wire antenna
supplied with this
receiver (page 18).
AM
ANTENNA
Connects to the
AM loop antenna
supplied with this
receiver (page 18).
C AUDIO INPUT section
AUDIO IN
jack
Connects to a CD
player, etc. (page
16).
D SPEAKER section
Connects to the
speakers and sub
woofer (page 14).
White (L)
Red (R)
