INSTALLATION
INSTRUCTIONS
8837 Instructions 10-7-14.docx Page 3 of 6

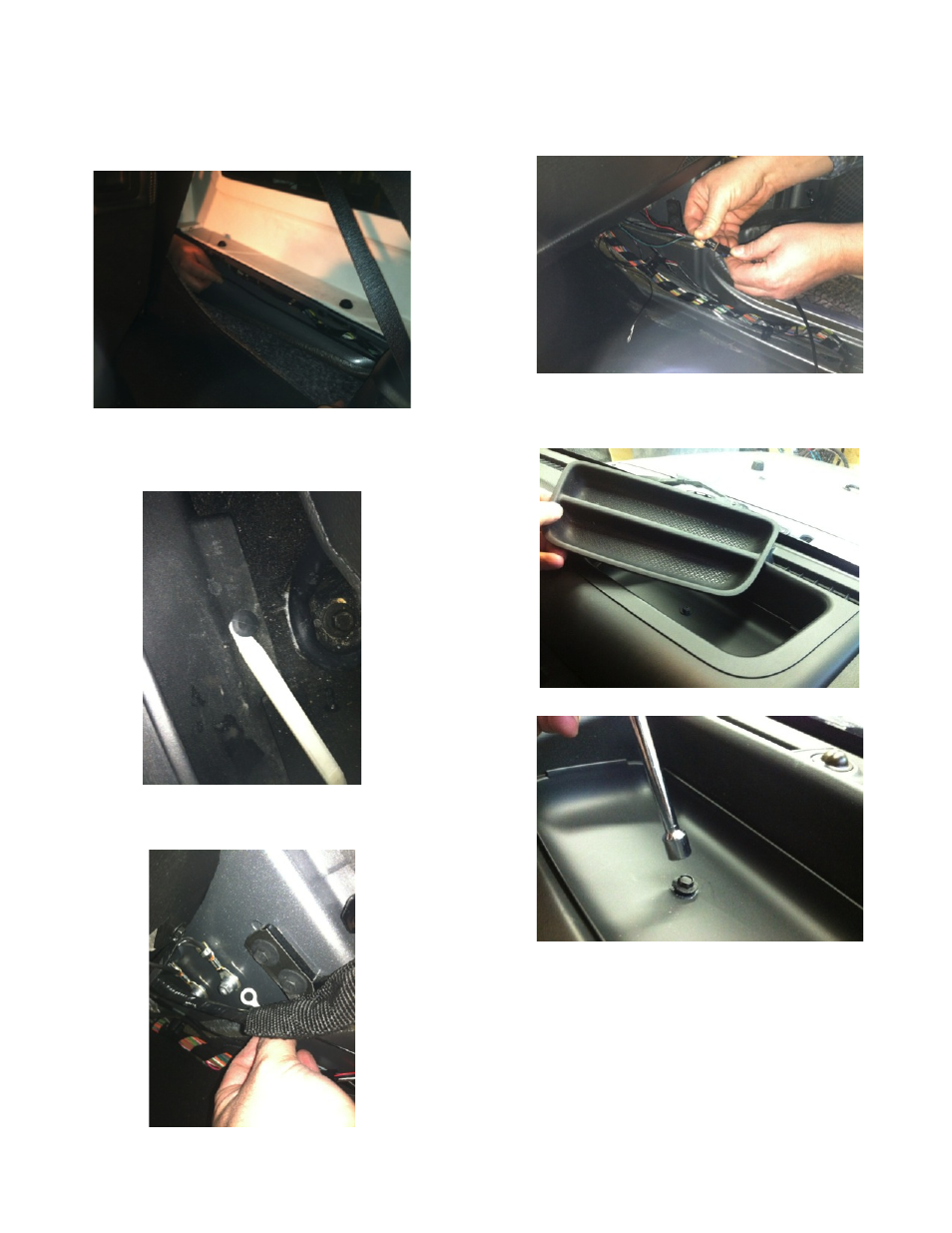

Step 13: Pull out subwoofer box slightly to gain access
to run Chassis Harness along existing harness
Step 14: Pull back carpet and continue running Chassis
Harness forward.
Step 15: Run Chassis Harness under B-pillar cover to
passenger door sill. Use a plastic trim removal tool to
remove the (2) plastic push pins and remove passenger
sill plate/kick panel.
Step 16: Use a 10mm socket to remove the existing nut
located behind the passenger kick panel and attach
ground eyelet of Chassis Harness to chassis ground.
Install Interior Harness
Step 17: Connect supplied Interior Harness to Chassis
Harness.
Step 18: Begin running loose terminal end of Interior
Harness forward by first removing IP access panel.
Step 19: Remove rubber bin insert from top of dash.
Step 20: Remove 7mm bolt.
