Assembly
■

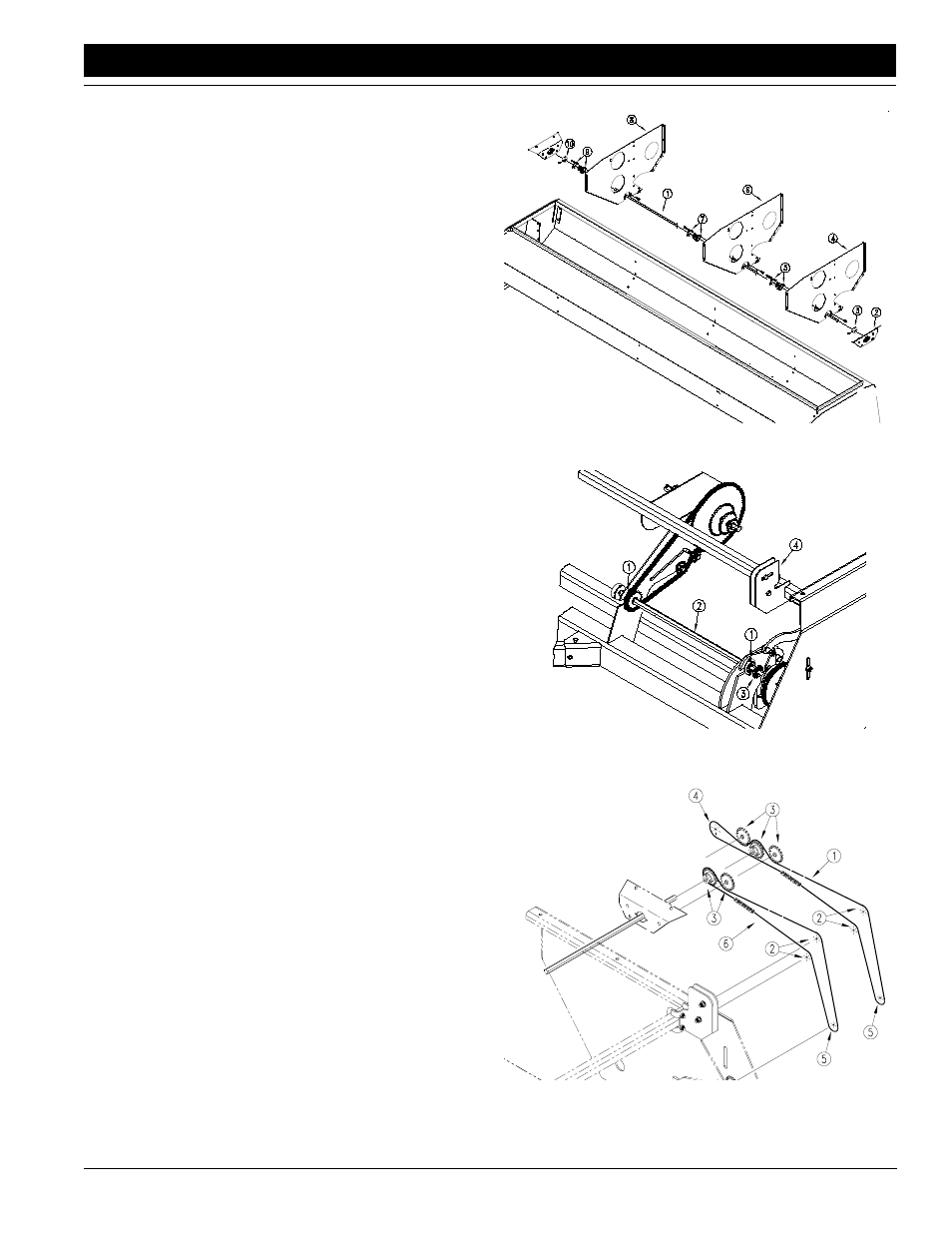

6. Slide the agitator shaft (1) into the seed box through the hole
in the left side of the drill. As you install the shaft, thread
bearings and lock collars onto shaft in the following order.
•Slide shaft through bearing plate (2)
•Install lock collar (3)
•Slide shaft through first divider (4)
•Install flange, bearing and flange (5)
•Slide shaft through second divider (6)
•Install flange, bearing and flange (7)
•Slide shaft through third divider (8)
•Install flange, bearing and flange (9)
•Install lock collar (10)
7. Bolt the flanges to the box dividers using 5/16-by-3/4-inch
carriage bolts, lock washers and nuts.
17043
Install Agitator Drive
If the drill has a small-seeds attachment, remove the drive chain
for the small-seeds attachment and proceed to Final Drive Con-
nection, page 3.
1. Move idlers out of drill drive chains and remove chains.
2. Loosen bolts holding jackshaft bearings (1). Remove jack-
shaft (2) from drill.
3. Install the 12-tooth sprocket (3) on jackshaft. Leave sprocket
set screw loose. Re-install jackshaft and drive chains.
4. Mount the idler assembly (4) on drill frame using 1/2-inch u-
bolts, lock washers and nuts. Leave u-bolts loose.
17044
Final Drive Connection
For drills with small-seeds attachment:
Thread the drive chain (1) over the idlers on the idler assem-
bly (2), back through the cutout in the box, over and under
the agitator sprocket and idlers (3), around the small-seeds
sprocket (4), and back to front 12-tooth sprocket (5) as
shown.
On drills without small-seeds attachment:
Thread the drive chain (6) over the idlers on the idler assem-
bly (2), back through the cutout in the box, around the agita-
tor sprocket and idler (3), and back to the front 12-tooth
sprocket (5) as shown.
After connecting the chain, align sprockets. Move the agitator
sprocket if necessary and secure by tightening set screws.
Change the position of the idler sprockets as needed by adjust-
ing the 5/8-inch jam nuts. Move the idler assembly as needed
then tighten u-bolts. Move the 12-tooth front sprocket as needed
and secure by tightening set screw.
Once all the chains are aligned, tighten lock collars on the drill
shaft. Be sure to lock the collars against the bearings mounted to
the bearing plates.
