Chapter 1: Set up
Connecting TV Antenna/Cable
You can use either an indoor or outdoor antenna with your TV. We recommend using an outdoor antenna for better
picture quality. You can receive cable TV by connecting a cable supplied by your local cable company.
Connecting VHP. UHF or VHF/UHF Combination Antenna*, or CATV Cable
75-ohm coaxial cable (round)
1

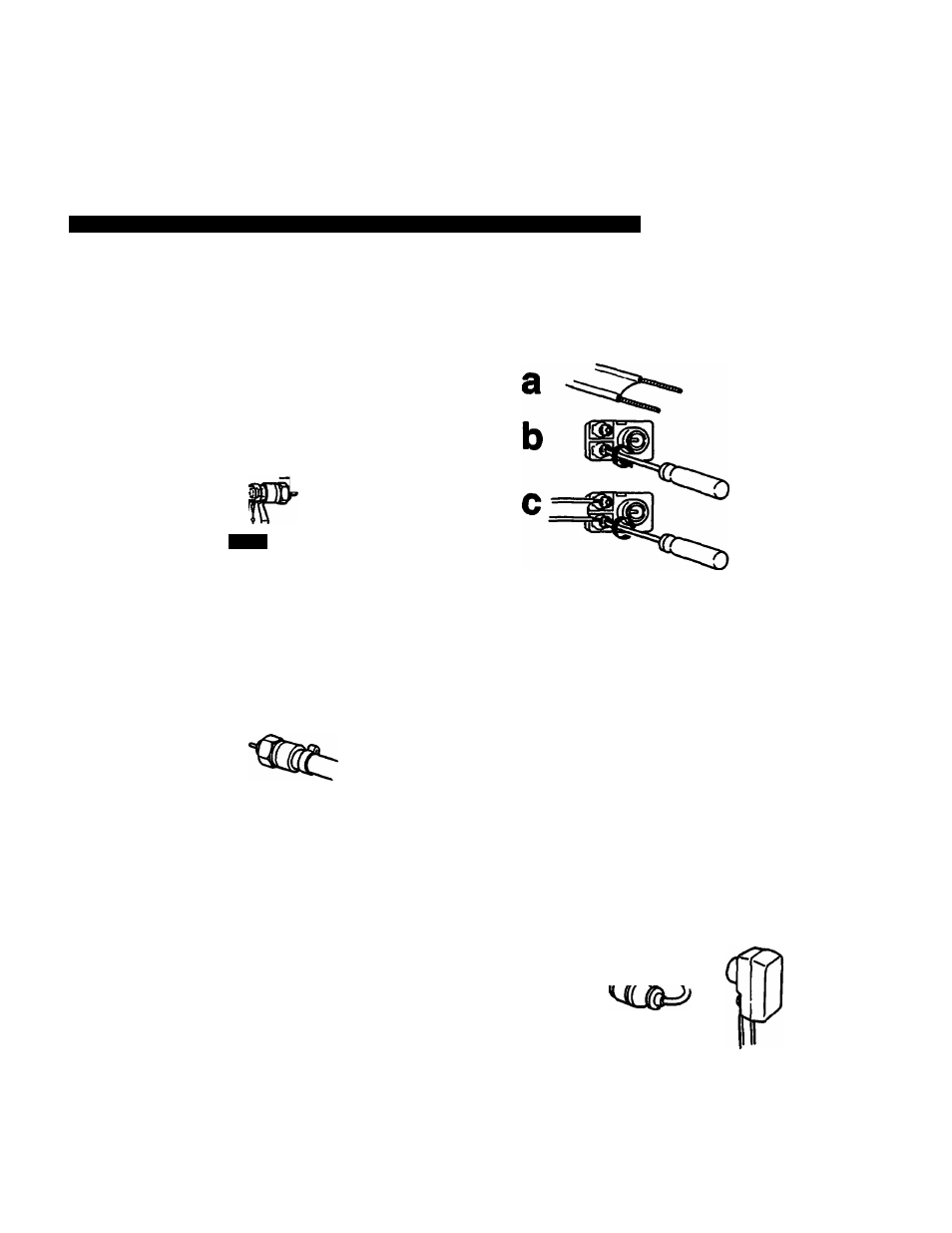

Check your antenna cable type and prepare the
end of the cable using the F-type connector.
Attach an F-type connector (not supplied).
a
b
c
d
7 mm (t4 inch) 10 mm (% inch) F-type connector
3
mm (Vk inch)
It
300-ohm twin-lead cable (flat)
1
Check your antenna cable type and prepare the
end of the cable using the 300-ohm twin-lead cable.
Attach an antenna connector (not supplied).
Loosen both
screws on the
connector with a
screwdriver.
Attach the cable
and tighten both
screws with a
screwdriver.
Plug the connector into the VHF/UHF terminal at
the rear of the TV.
(Rear of TV)
VHF/UHF
Plug the connector into the VHF/UHF terminal at
the rear of the TV.
(Rear of TV)
VHF/UHF
(T^
r
* Most combination antennas are equipped with a signal splitter.
Remove the splitter and attach the appropriate connector.
For better picture quality, connect optional antenna cable
so that the 300-ohm twin-lead cable can be separated a
distance from the TV.
(Rear of TV)
VHF/UHF
