7-1
7.1 Rotary knob
7 Operation
7 7000 Operation Operation 7- 7.1 Rotary knob 7100 Rotary knob 7-
7.1.1 Function
Function 7- Inbetriebnahme_Drehknopf_Funktion
The menu settings are made on the unit's display via a rotary knob. You
have the option to make the settings on the knob by hand or with a
screwdriver. If you make the settings with a screwdriver, the knob can
remain within the unit.

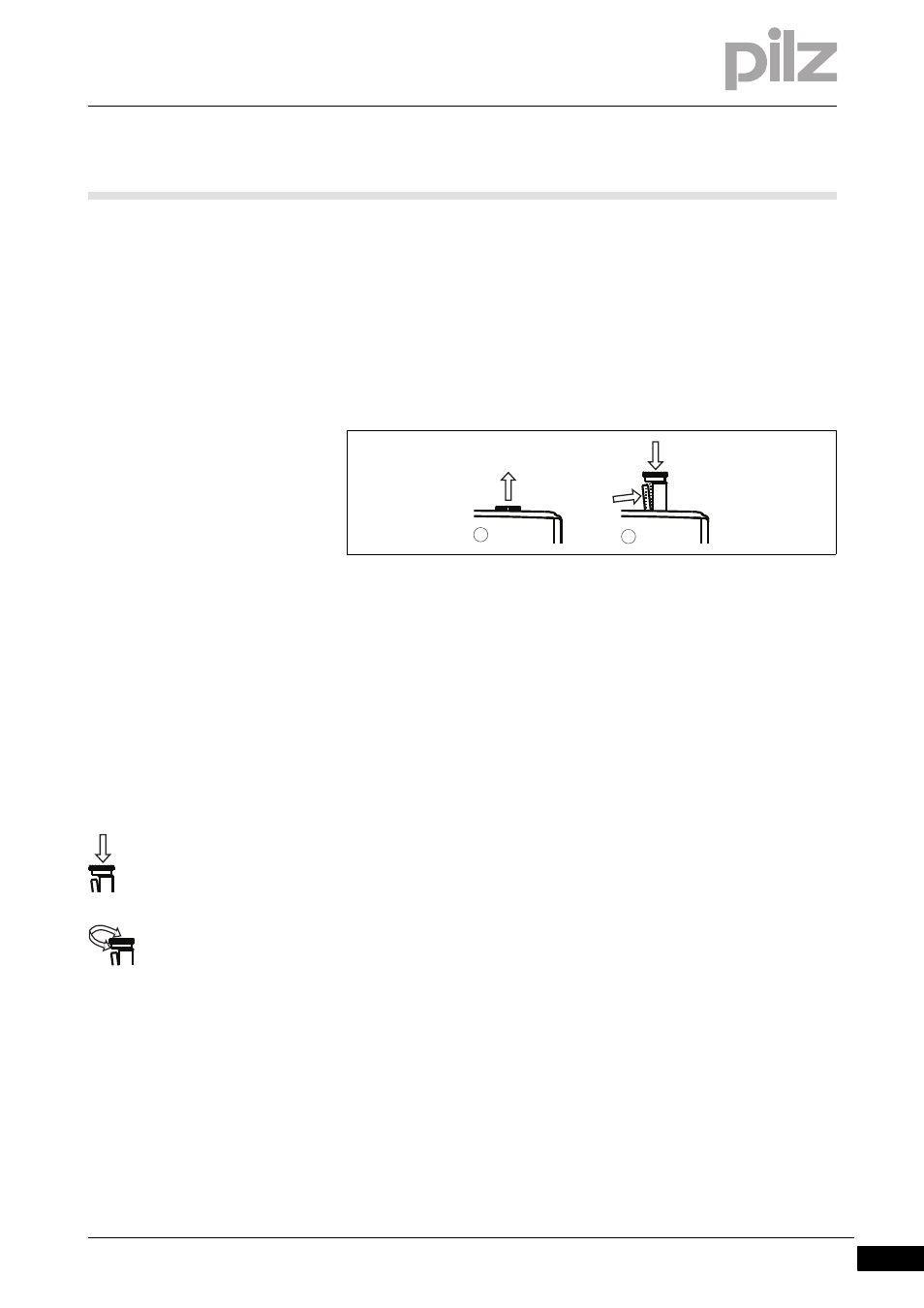

7.1.2 Pull out and retract the knob
Pull out and retract the knob 7- Inbetriebnahme_Drehknopf_Bild
Inbetriebnahme_Drehknopf_Funktion_heraus_und_zurck
The rotary knob:
 (A) should be pulled out until it clicks into position
 (B) then released and retracted back into the unit:
– Press the latch on the side of the rotary knob (1) towards the centre
of the knob. This releases the rotary knob.
– Press the knob downwards (2) while keeping the latch held down.
7.1.3 Rotate and press the knob
Rotate and press the knob 7- Inbetriebnahme_Drehknopf_Funktion_drcken_drehen_anzeigen
The settings are made via the rotary knob, as follows:
Press the knob
 Confirm selection/setting
 Switch to menu
Rotate knob
 Select menu level
A
1.
2.
B
