Operation
Operating Manual PNOZ m B0
1002660­EN­03 27
You can switch between the menu levels by pressing or rotating the knob.
7.2.1 Rotary knob
7.2.1.1 Function
The menu settings are made on the unit's display via a rotary knob. You have the option to
make the settings on the knob by hand or with a screwdriver. If you make the settings with
a screwdriver, the knob can remain within the unit.

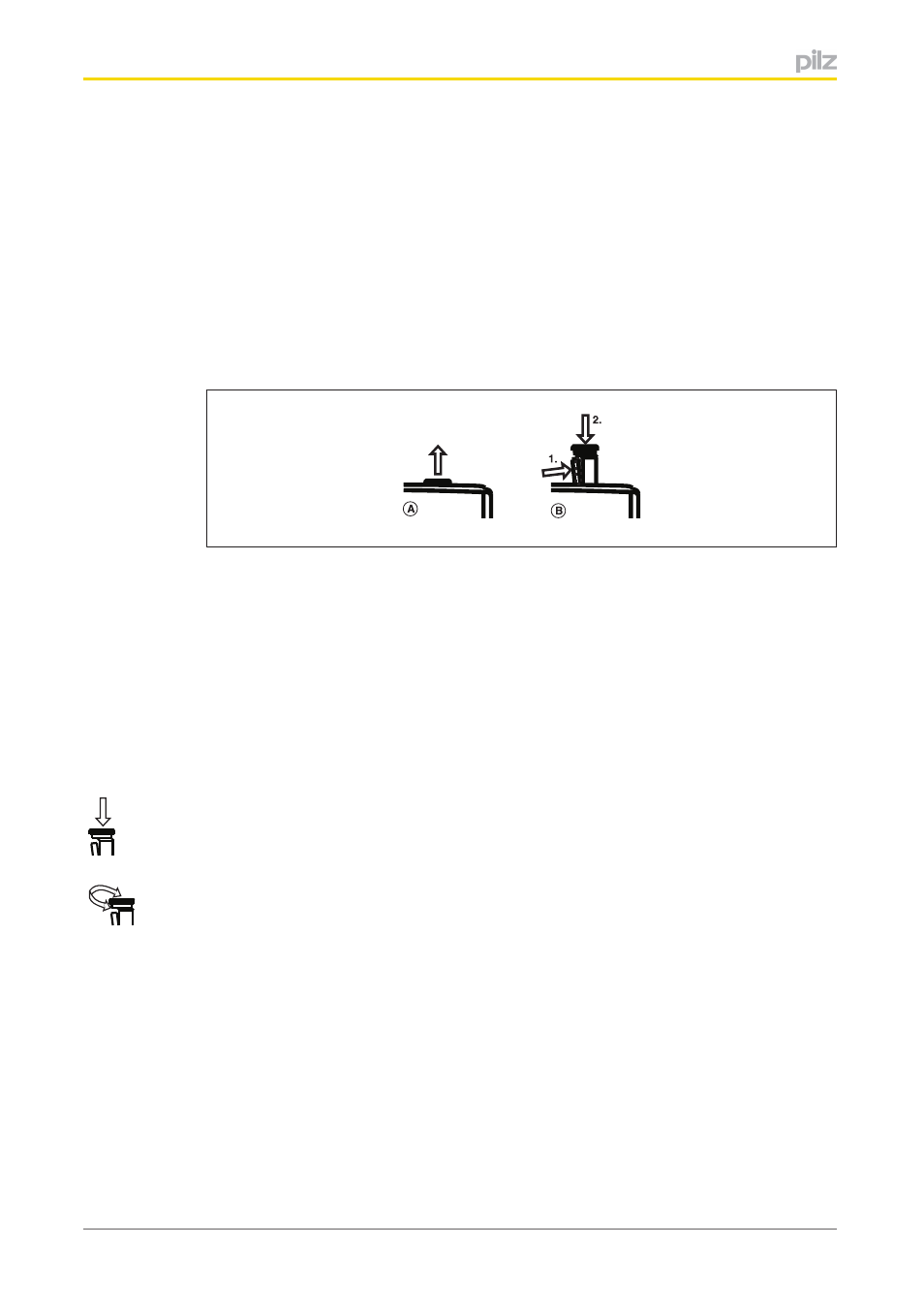

7.2.1.2 Pull out and retract the knob
The rotary knob:
} (A) should be pulled out until it clicks into position
} (B) then released and retracted back into the unit:
– Press the latch on the side of the rotary knob (1) towards the centre of the knob.
This releases the rotary knob.
– Press the knob downwards (2) while keeping the latch held down.
7.2.1.3 Rotate and press the knob
The settings are made via the rotary knob, as follows:
Press the knob
} Confirm selection/setting
} Switch to menu
Rotate knob
} Select menu level
