Overview
Operating Manual PSSu H m F DPsafe SN SD
1002933­EN­02 8

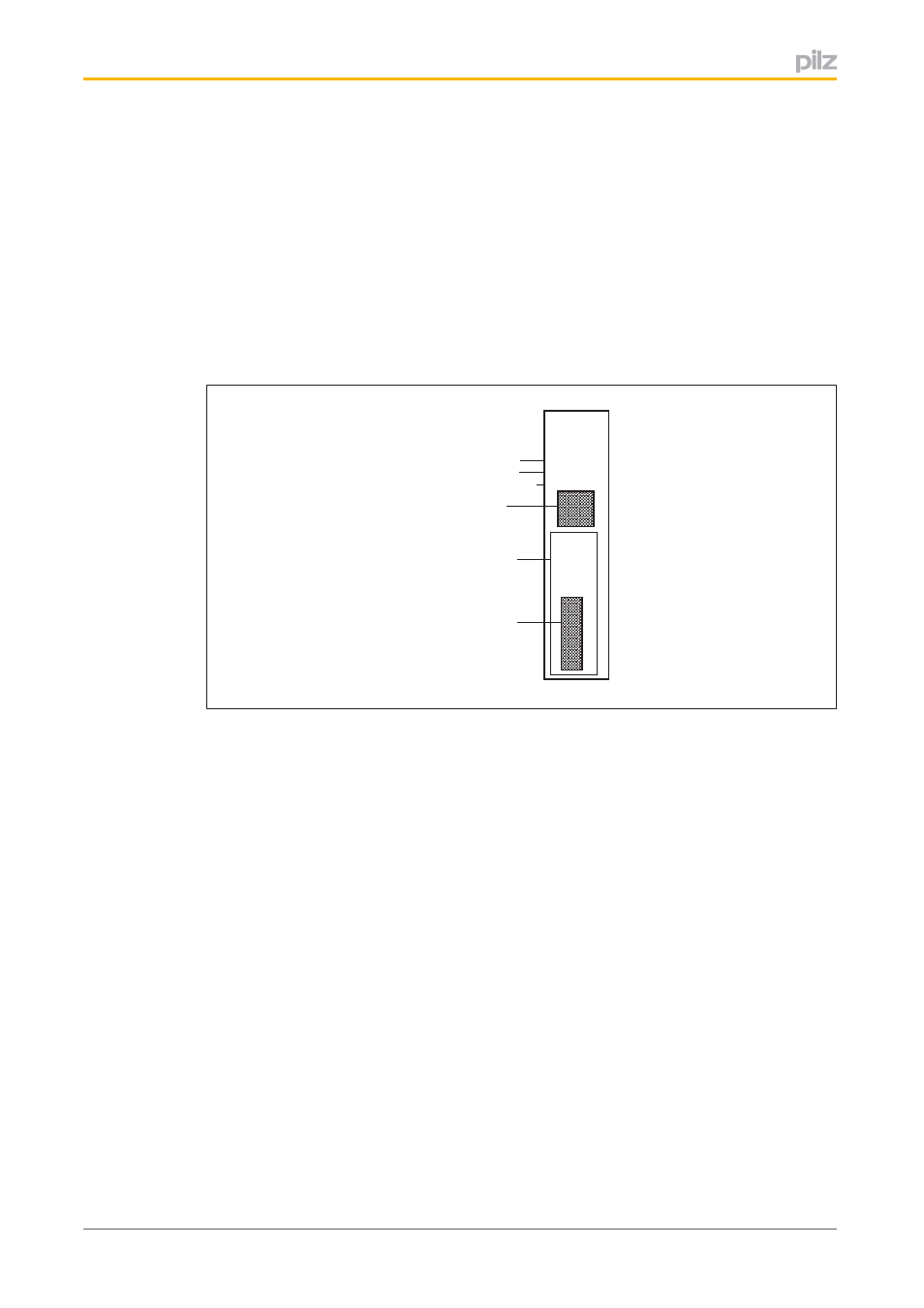

Legend:
} 1: SafetyNET p interface
} 2: PROFIBUS­DP interface with PROFIsafe
} 3: Labelling strip (see below for details)
} 4: Status LEDs
} 5: SD card
} 6: Reset button
} 7: Supply voltage connection (module and periphery supply)
The labelling strip contains the following information:
Order number
Serial number
Hardware version
2D code:
Product
information
MAC address
2D code:
MAC address
MAC
ADD
0002
4840
3152
312066
100017
HW 001
