MOUNTING DIMENSIONS
FIGURE 4
LH100 Mounting Dimensions
ELECTRICAL CONNECTIONS

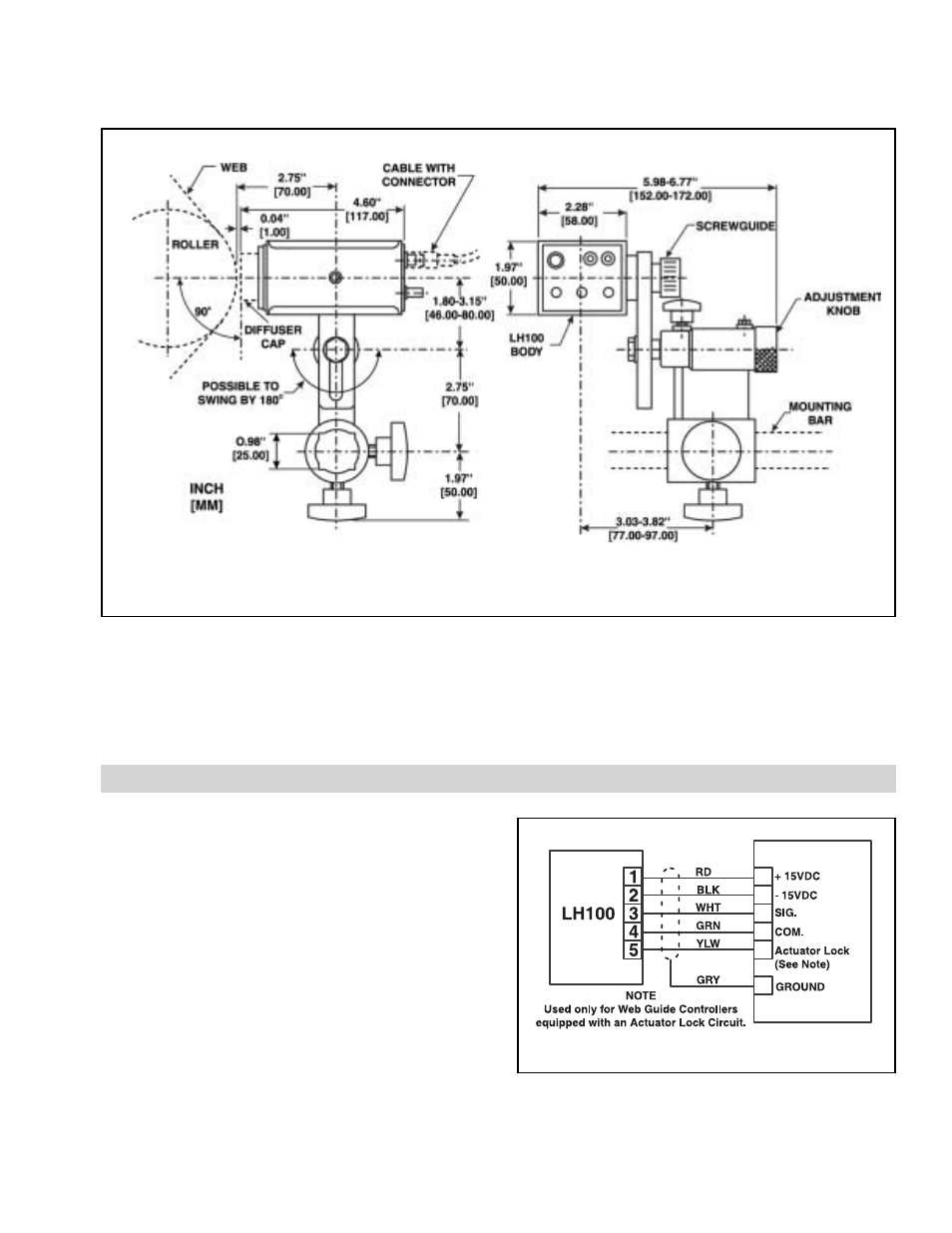

FIGURE 5
Make the electrical connections between the LH100
and the controller as shown (See Figure 5).
