1-1. Plug-in hybrid system
PRIUS PHV_OM_OM47787U_(U)
Plug-in hybrid system precautions
Take care when handling the hybrid system, as it contains a high
voltage system (about 650V at maximum) as well as parts that
become extremely hot when the hybrid system is operating. Obey
the caution labels attached to the vehicle.

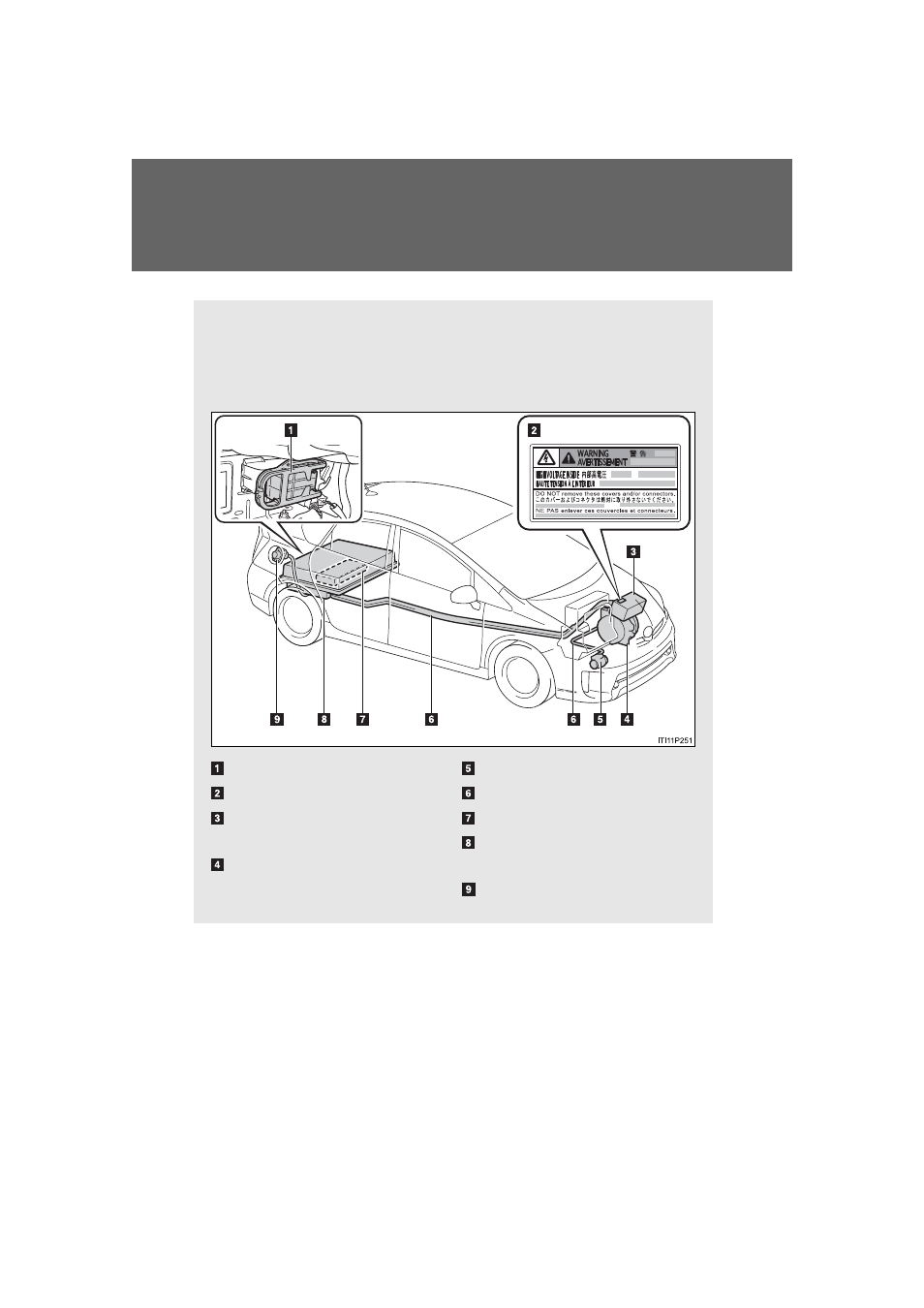

Service plug
Caution label
Power control unit and DC/
DC converter
Electric motor (traction
motor)
Air conditioning compressor
High voltage cables (orange)
Battery charger
Hybrid battery (traction bat-
tery)
Charging inlet
