498
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47787U_(U)

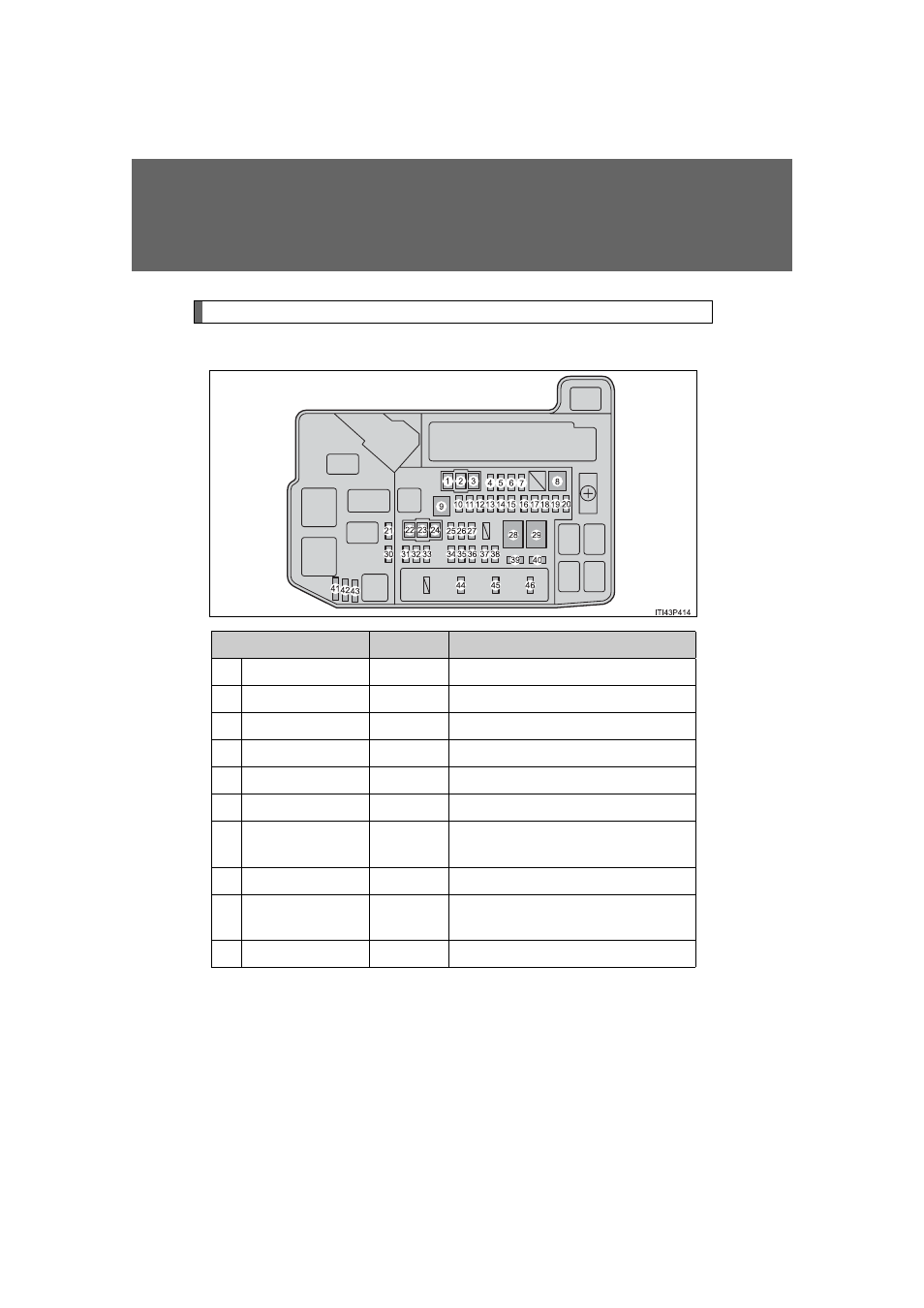

Fuse layout and amperage ratings
■
Engine compartment
FUSE Ampere Circuit
1 HTR 50A Air conditioning system
2 RDI 30A Electric cooling fans
3 CDS 30A Electric cooling fans
4 FUEL OPN 7.5A Fuel filler door opener
5 S-HORN 10A No circuit
6 ENG W/P 30A Cooling system
7
ABS MAIN
NO.2
7.5A Anti-lock brake system
8 H-LP CLN 30A Headlight cleaner
9 P-CON MTR 30A
P position control system, trans-
mission
10 AMP NO.1 30A Audio system
