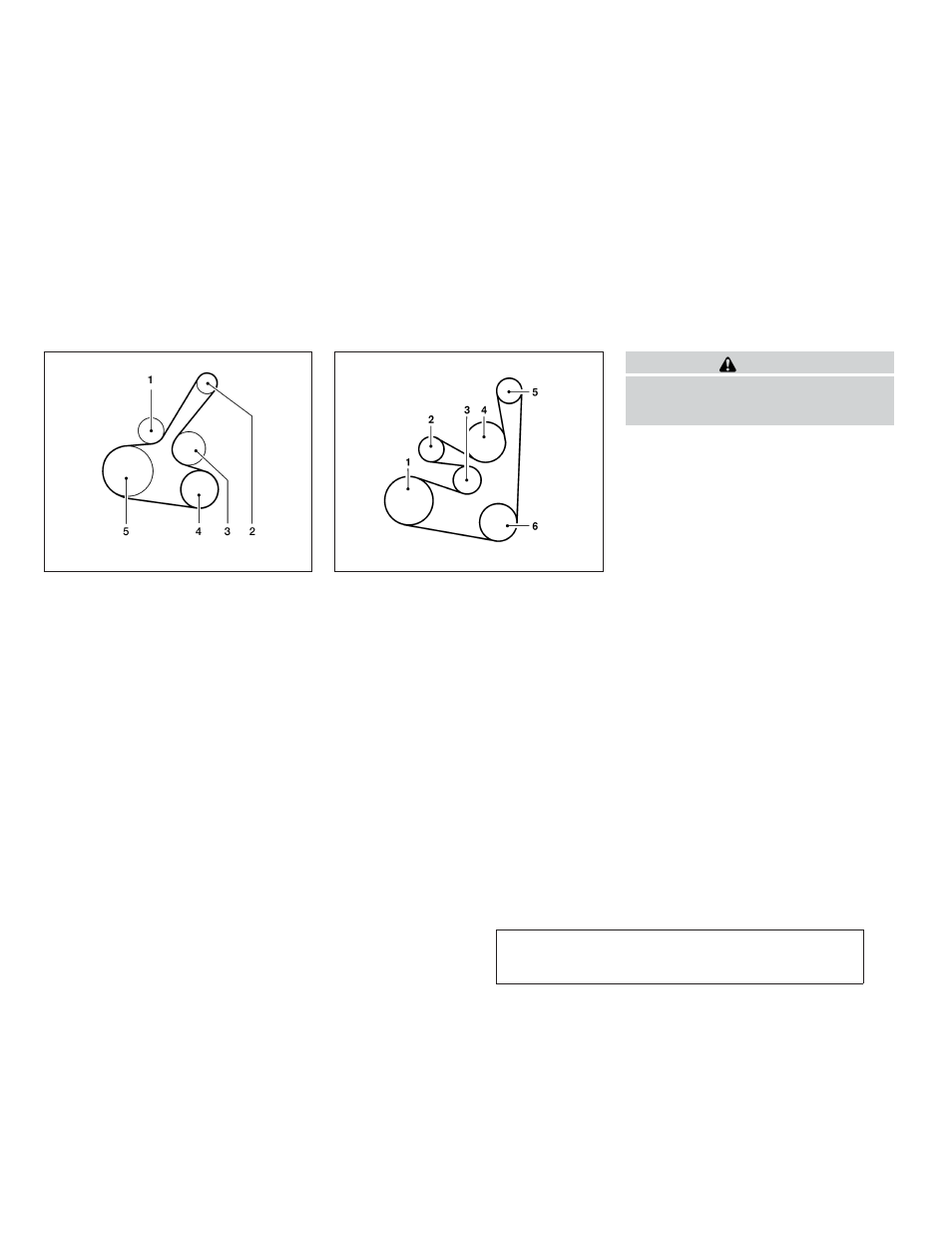

Drive belt -17 – NISSAN 2009 Sentra User Manual
Page 263
Advertising
1.
Automatic tensioner
2.
Generator
3.
Water pump
4.
Air conditioner compressor
5.
Crankshaft pulley
1.
Crankshaft pulley
2.
Idler Pulley
3.
Automatic tensioner
4.
Water pump
5.
Generator
6.
Air conditioner compressor
WARNING
Be sure the ignition key is in the OFF or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.
1. Visually inspect the belt for signs of unusual
wear, cuts, or fraying. If the belt is in poor
condition, have it replaced or adjusted by a
NISSAN dealer.
2. Have the belt checked regularly for condi-
tion.
MR20DE model
WDI0638
QR25DE model
WDI0696
DRIVE BELT
Maintenance and do-it-yourself
8-17
