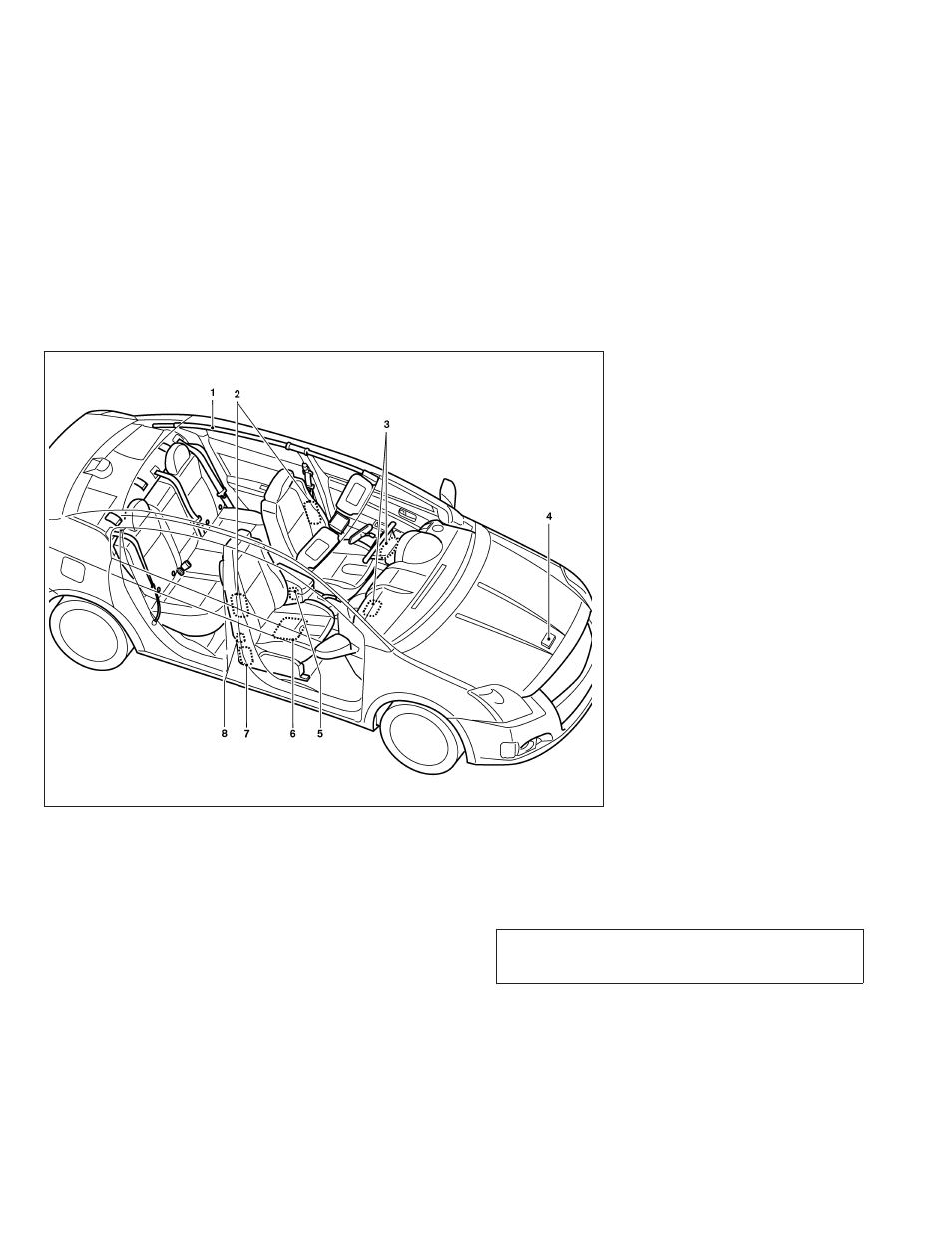

1. Roof-mounted curtain side-impact
supplemental air bag inflators
2. Front seat-mounted side-impact
supplemental air bag modules
3. Supplemental front-impact air bag
modules
4. Crash zone sensor
5. Air Bag Control Unit (ACU)
6. Occupant classification sensor
(pressure sensor)
7. Pretensioner
8. Side satellite sensor
NISSAN Advanced Air Bag System
(front seats)
This vehicle is equipped with the NISSAN Ad-
vanced Air Bag System for the driver and front
passenger seats. This system is designed to
meet certification requirements under U.S. regu-
lations. It is also permitted in Canada. However,
all of the information, cautions and warn-
ings in this manual still apply and must be
followed.
The driver supplemental front-impact air bag is
located in the center of the steering wheel. The
passenger supplemental front-impact air bag is
mounted in the dashboard above the glove box.
The front air bags are designed to inflate in higher
severity frontal collisions, although they may in-
LRS0725
Safety—Seats, seat belts and supplemental restraint system 1-47
