3 Installation and Power-Up Sequence
Installation:

Verify that both projectors and the ShowVault are turned off.

Install the IMB-SM in the primary projector.

Install the IMB-LD in the secondary projector.

Connect Ethernet cables to both projectors and the ShowVault and verify that they are on the
same network.

Connect the PCI-express cable from the ShowVault to the IMB-SM (primary projector).

Connect BNC cables (A and B) from the Primary Pr ojector’s SDI-out connectors to the
Secondary Projector’s SDI-In connectors.

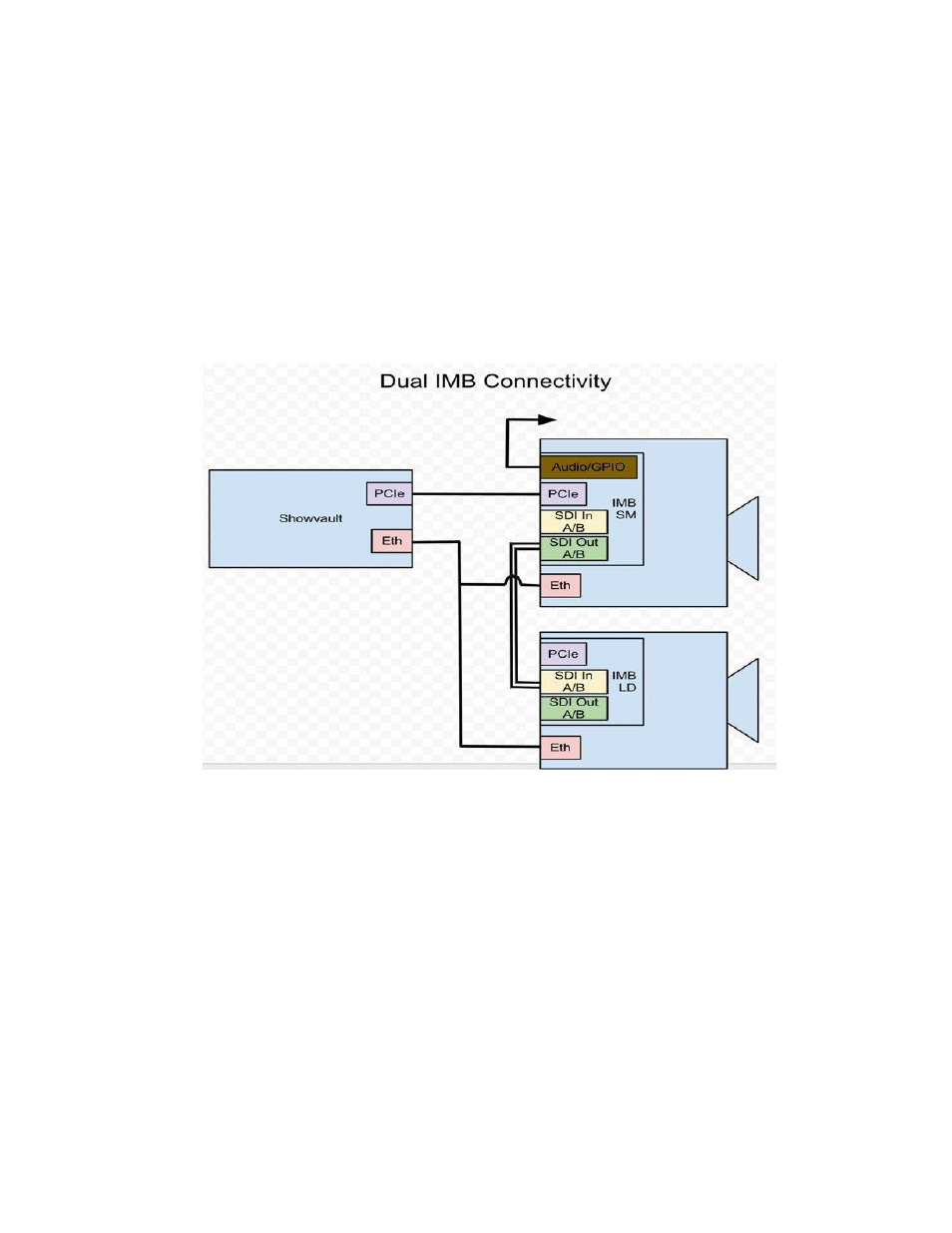

Figure 1: Dual IMB Connectivity Diagram
Power-Up Sequence:

Power up the Primary Projector.

Power up the Secondary Projector.

Wait until both projectors are completely powered up.

Power up the ShowVault.
DLM Ingest:
With the system fully booted up, you should now ingest DLM
Configure_RemoteSPBEnable_IMB.dlm_XXXXXX.drm if not already present on the system.
To Audio Processor/
Automation System
Primary
Projector
Secondary
Projector
