NViS 2280 User Manual

Chapter 3: System Setup

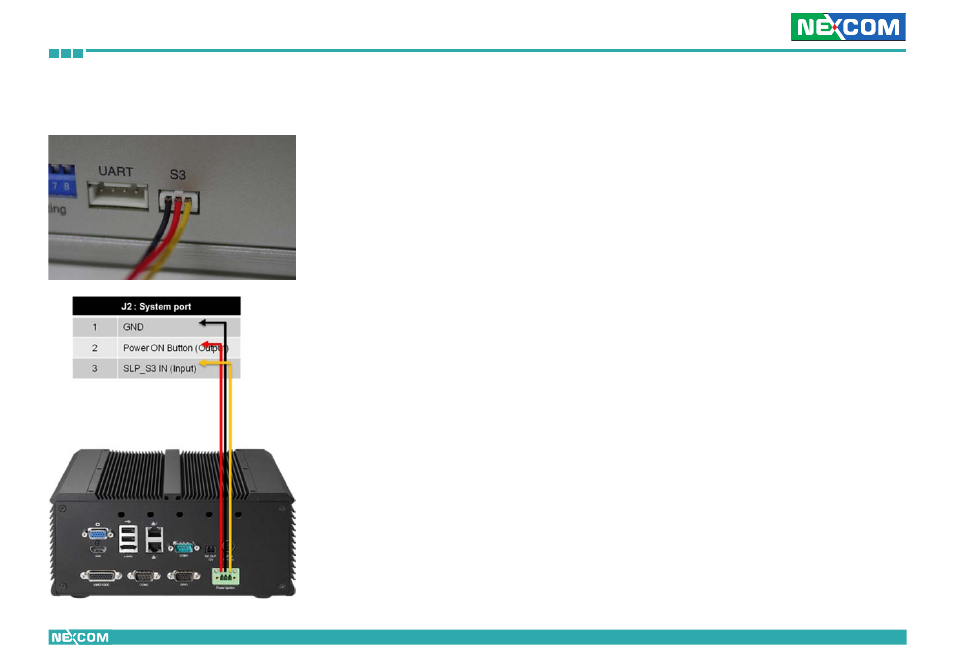

3. Connect the S3 control port to the Power Ignition port, refer to the pin/

wiring definition table below:
