Appendix F: MCU Programming (NISKIG120)
Appendix F: MCU Programming
(NISKIG120)

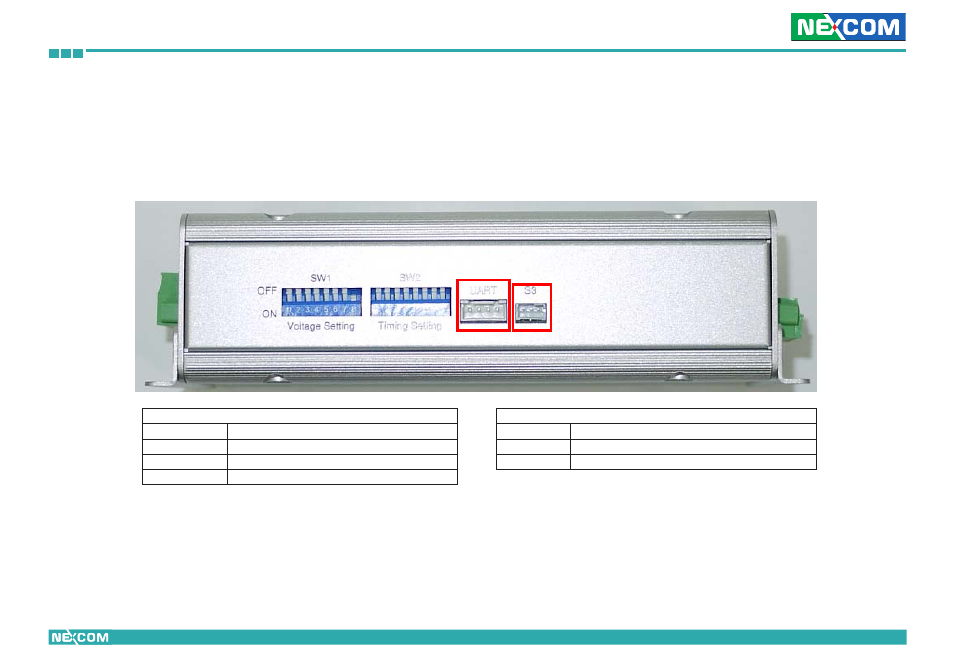

J1 : MCU programming port (RS232 signal)
1 GND
2 COM TX (Output)
3 COM RX (Input)
4 N/A
J2 : System port
1 GND
2 Power ON Button (Output)
3 SLP_S3 IN (Input)
J1
J2
1 4 1 3
