Chapter 2: Jumpers and Connectors
NDiS 163 User Manual
Internal Connectors Pin Definitions
This section provides descriptions, illustrations and pin definitions of the
internal connectors.

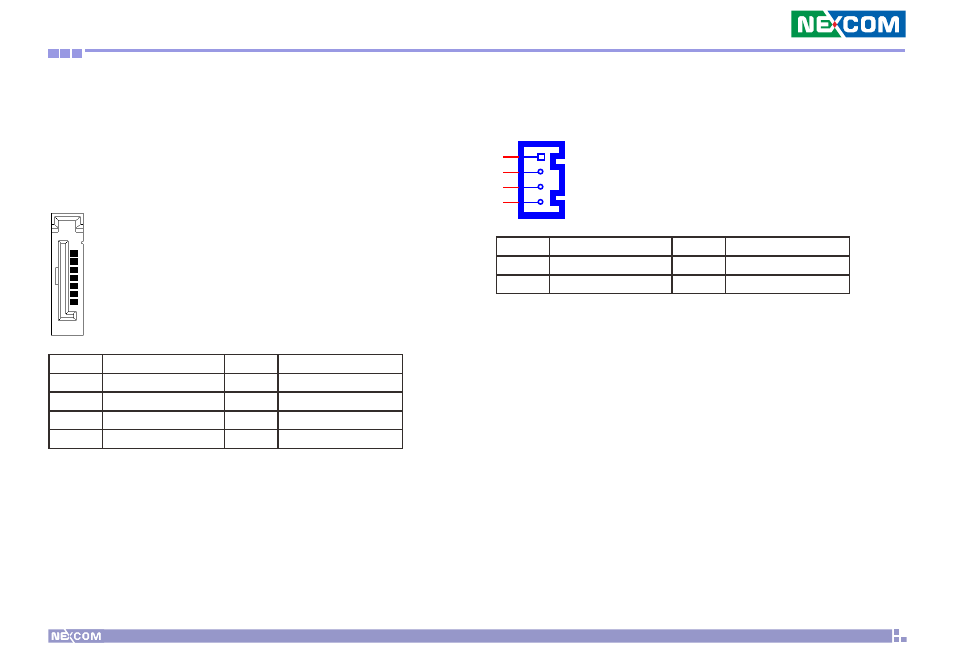

SATAII Connector
J9 (Standard Serial ATAII 1.27mm connector)
1
7
Pin
Definition
Pin
Definition
1
GND
2
TXP1
3
TXN1
4
GND
5
RXN1
6
RXP1
7
GND
SATA Power Connector
J8 (JST 2.0mm vertical type with lock)
J8
JST-2.0mm-M-180
1
2
3
4
Pin
Definition
Pin
Definition
1
+12V
2
GND
3
GND
4
+5V
