Chapter 3: System Setup
NDiS 163 User Manual

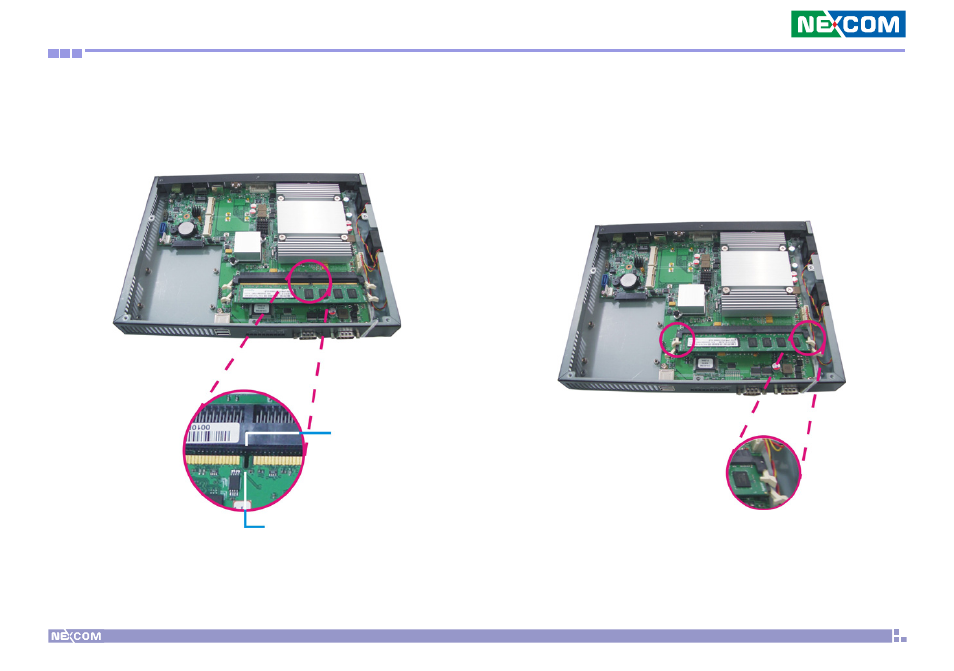

3. Note how the module is keyed to the socket. Grasping the module by
its edges, align the module with the socket so that the “notch” on the
module is aligned with the “key” on the socket. The key ensures the
module can be plugged into the socket in only one direction.
Notch
Key
4. Insert the module into the socket at an approximately 30 degrees
angle. Apply firm even pressure to each end of the module until it slips
down into the socket. The contact fingers on the edge of the module
will almost completely disappear inside the socket.
The ejector tabs at the ends of the socket will automatically snap into
the locked position to hold the module in place.
