Chapter 2: Jumpers and Connectors
NDiS 163 User Manual

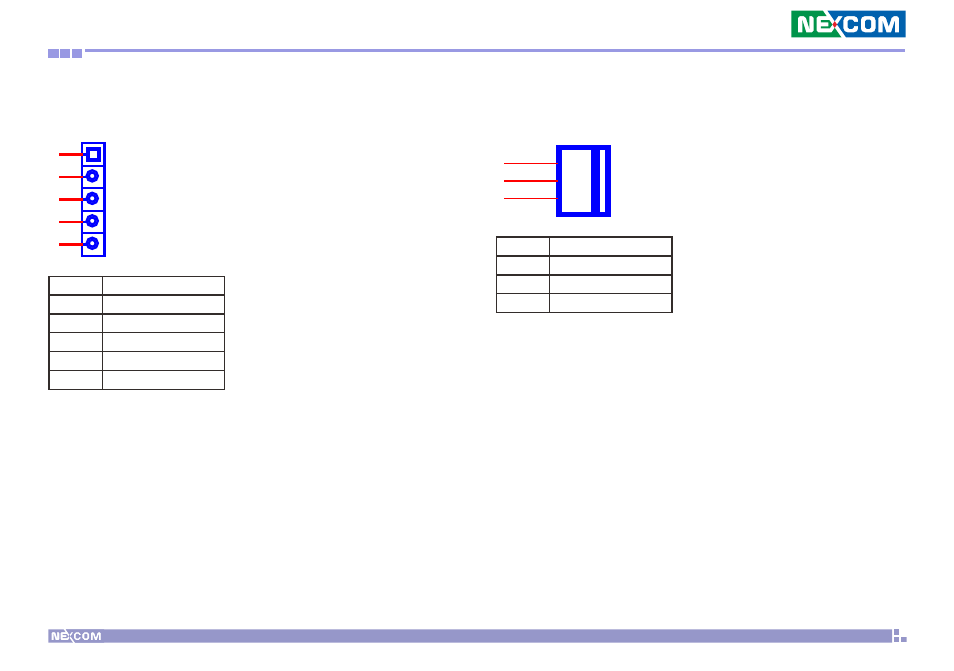

IRDA Connector
JP1 (1x5 2.54mm Pitch Pin Header)
JP1
PIN-2.54mm-M-180
1
2
3
4
5
Pin Definition
1 +5V
2 CIRRX
3 IRRX
4 GND
5 IRTX
CPU Fan Connector
J1 / J2 (Wafer-2.54mm Male 180)
J12
FAN-2.54mm-M-180
1
2
3
Pin Definition
1 GND
2 12V
3 SENSE
