4.7.6 USB Interface

A standard USB Series B device connector is located on the rear panel for remote control. A standard
USB cable between the AC Source and a PC or USB Hub may be used.

Note:

Use of the USB port to control more than one power source from a single PC is not
recommended, as communication may not be reliable. Use GPIB interface for multiple power
source control.

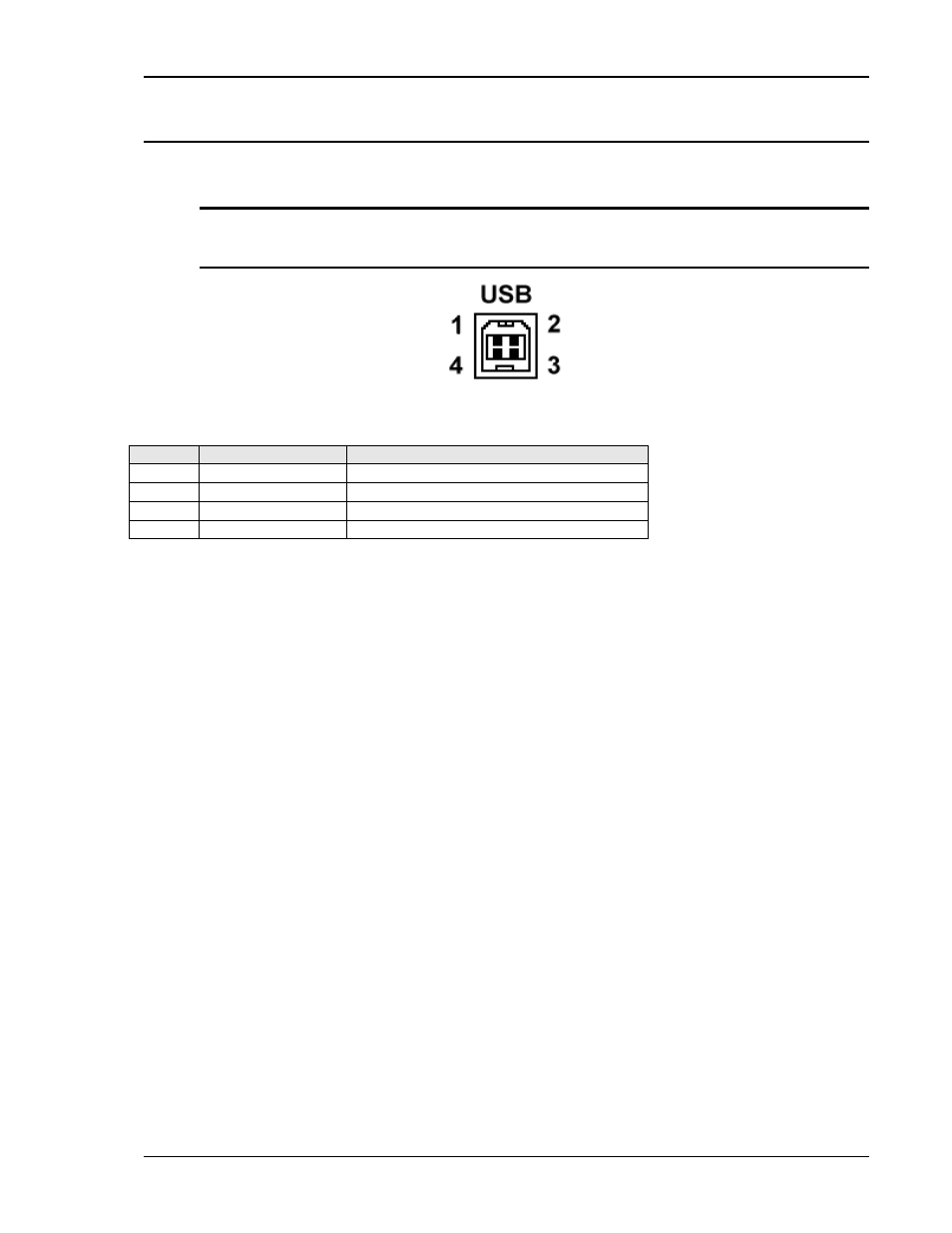

Figure 4-10: USB Connector pin orientation.

Pin

Name

Description

1 VBUS

+5

VDC

2 D-

Data

-

3 D+

Data

+

4 GND

Ground

Table 4-10: USB Connector pin out.
