Users Manual - 610 / 611 / 612 Printers
2. Loading Supplies
•
11
9.
Adjust the supply guides so they touch the supply. Push up on the supply lever to lock
the supply guides into place.
10.

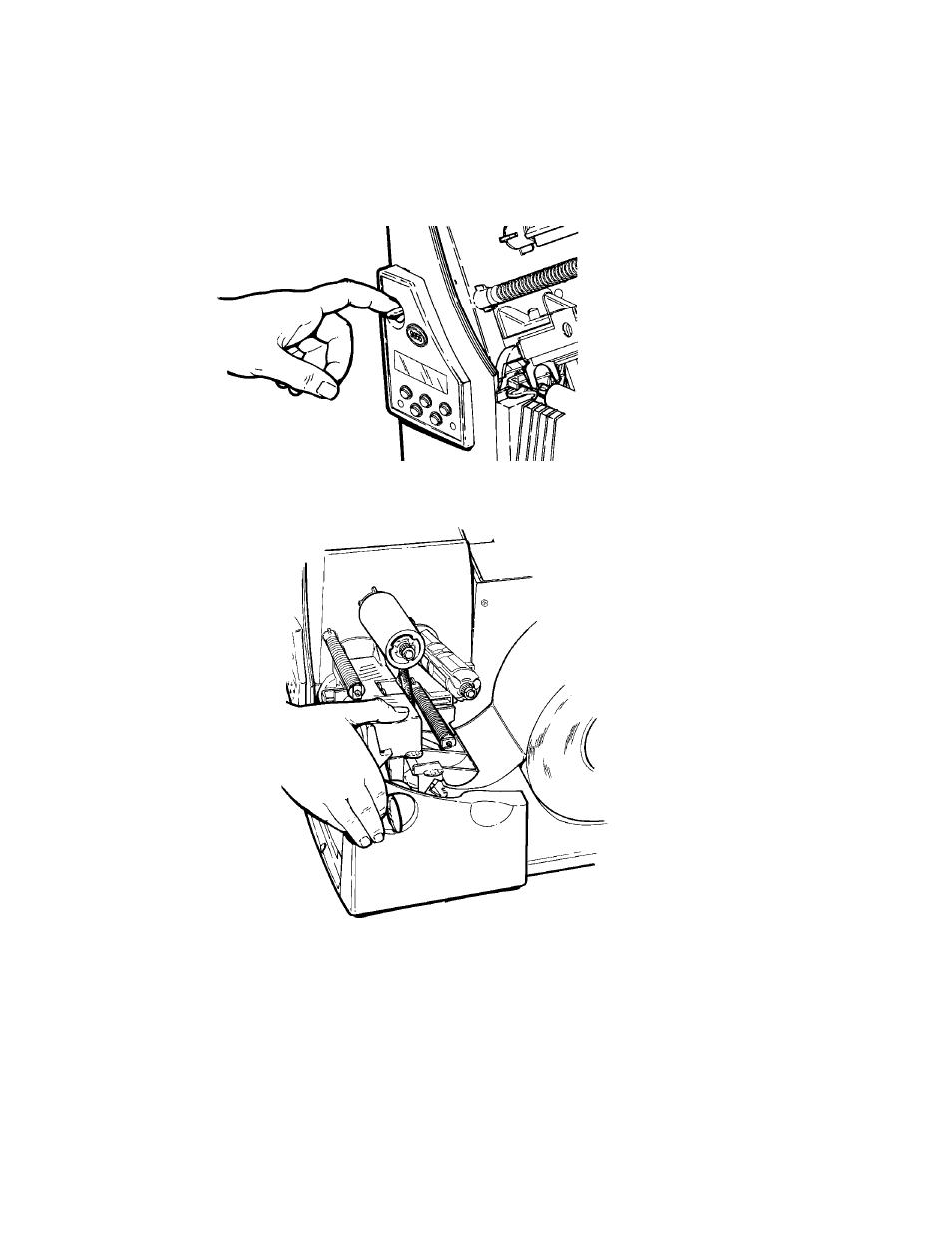

Hold the printhead assembly by the printhead tab while pressing down on the printhead
11.
Close the printhead by pressing down on the thumb well until you hear it click into place.
