9437200990 Rev C 9

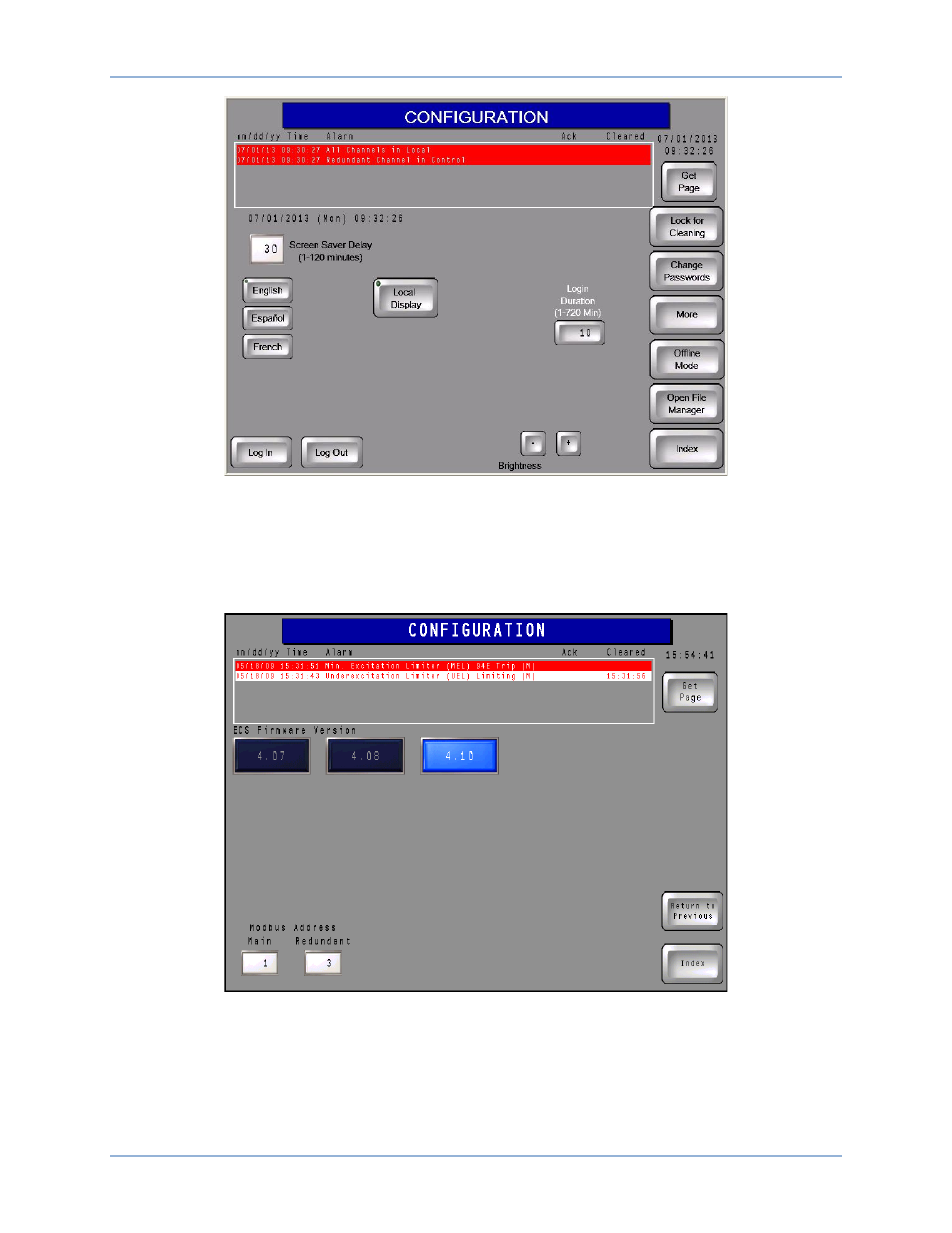

Figure 3. System Configuration Screen
Additional Configuration Screen
Pressing the More button accesses a second Configuration screen, illustrated in Figure 4. This screen
enables selection of the firmware version being used by the control system and the Modbus address of
the main and redundant channels.
Figure 4. Firmware and Modbus Address Configuration Screen
File Manager
The Open File Manager button accesses the file manager which lists the files present on an inserted
compact flash card and connected USB device. Files can be copied or moved from one storage device to
the other or deleted.
IDP-1200 IDP-1200 Operation with ECS2100 and ECS/RW
