Product Overview
4 KL5111-0000
2 Product Overview

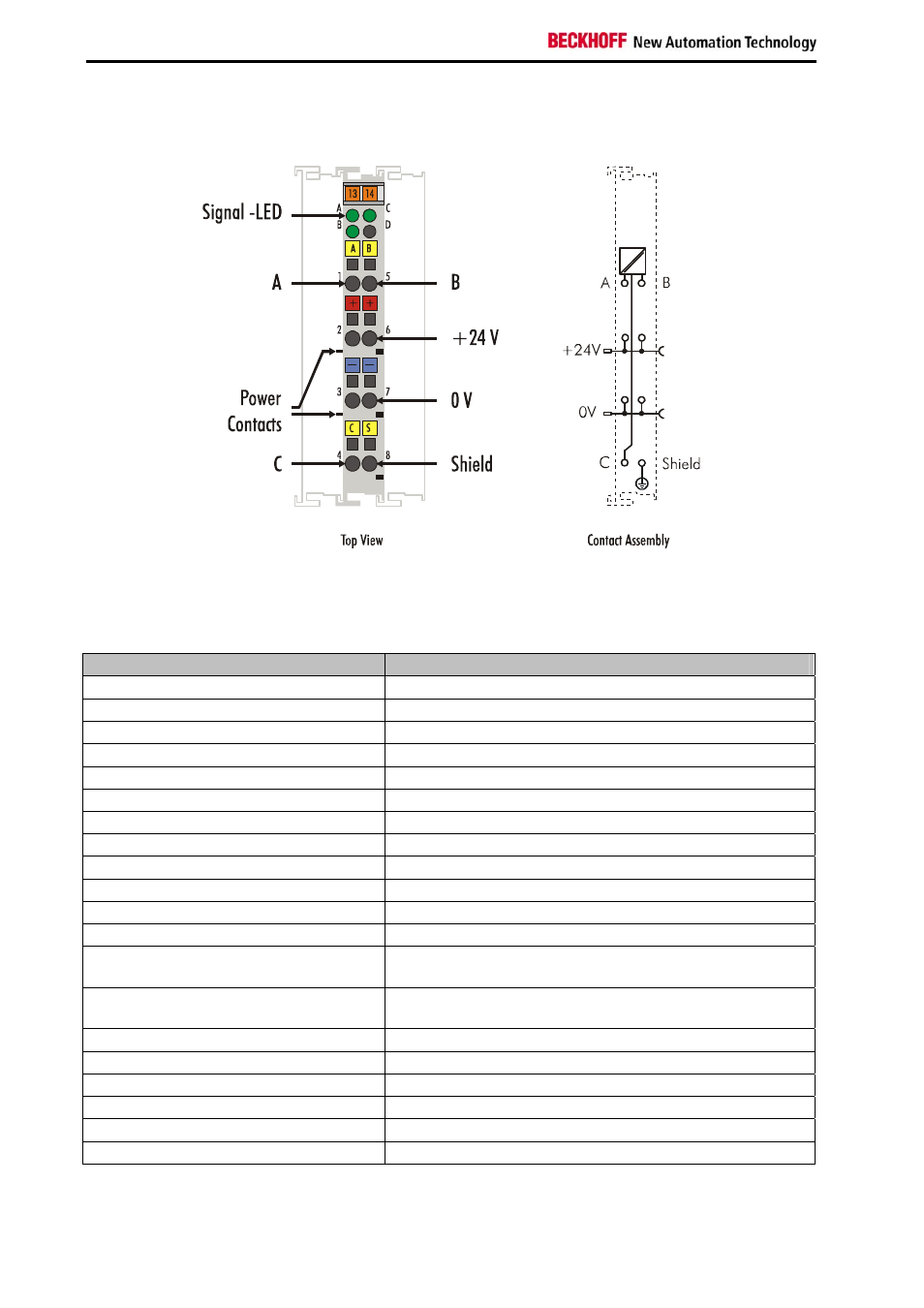

2.1 Technical Data
Technical Data KL5111-0000, KS5111-0000
Sensor connection A, B, C; 24 V
Sensor operating voltage 24 V
DC
Counter 16 bits binary
Cut off frequency 1 MHz
Quadrature decoder 4 time evaluation
Zero pulse latch 16 Bit
Commands read, set, activate
Supply voltage 24 V
DC
(20 ... 29 V)
Current consumption of Power contacts typically 0,1 A (without sensor load current)
Bit width in the process image E/A: 2 x 16 Bit Data, 2 x 8 Bit Control / Status
Current consumption from K-Bus typically 50 mA
Weight app. 60 g
Permissible ambient temperature range
during operation 0°C ... +55°C
Permissible ambient temperature range during
storage -25°C ... +85°C
Relative humidity 95%, no condensation
Vibration / shock resistance according to EN 60068-2-6 / EN 60068-2-27, EN 60068-2-29
EMC resistance Burst / ESD according to EN 61000-6-2 / EN 61000-6-4
Installation position any
Protection class IP20
Approval CE
