Technical data

FM33xx

7

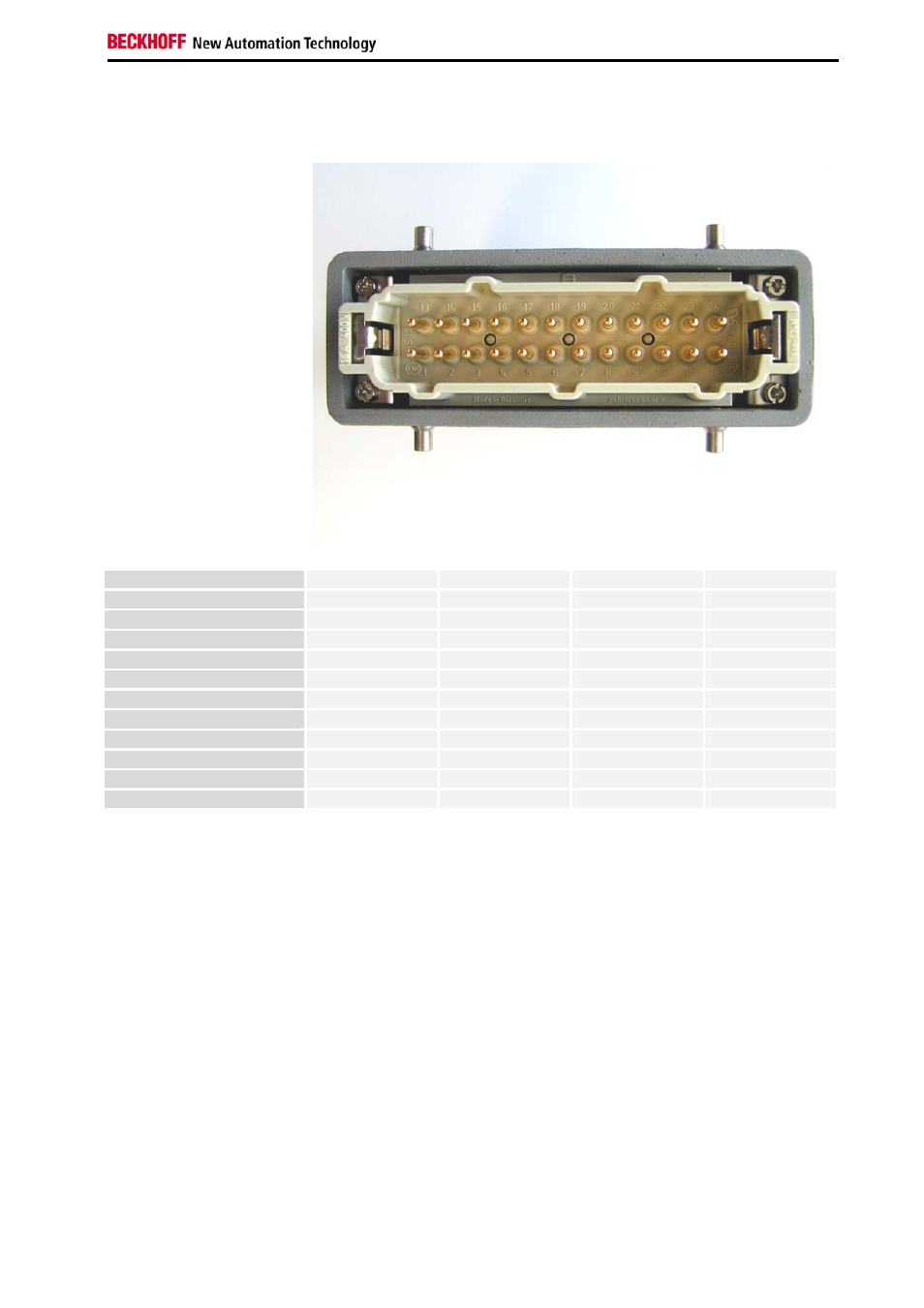

Pin assignment for the 24-pin connection strip

Pin assignment FM3312

pin 1

TC1+

pin 13

TC1-

pin 2

TC2+

pin 14

TC2-

pin 3

TC3+

pin 15

TC3-

pin 4

TC4+

pin 16

TC4-

pin 5

TC5+

pin 17

TC5-

pin 6

TC6+

pin 18

TC6-

pin 7

TC7+

pin 19

TC7-

pin 8

TC8+

pin 20

TC8-

pin 9

TC9+

pin 21

TC9-

pin 10

TC10+

pin 22

TC10-

pin 11

TC11+

pin 23

TC11-

pin 12

TC12+

pin 24

TC12-
