I/O configuration
22 FM33xx

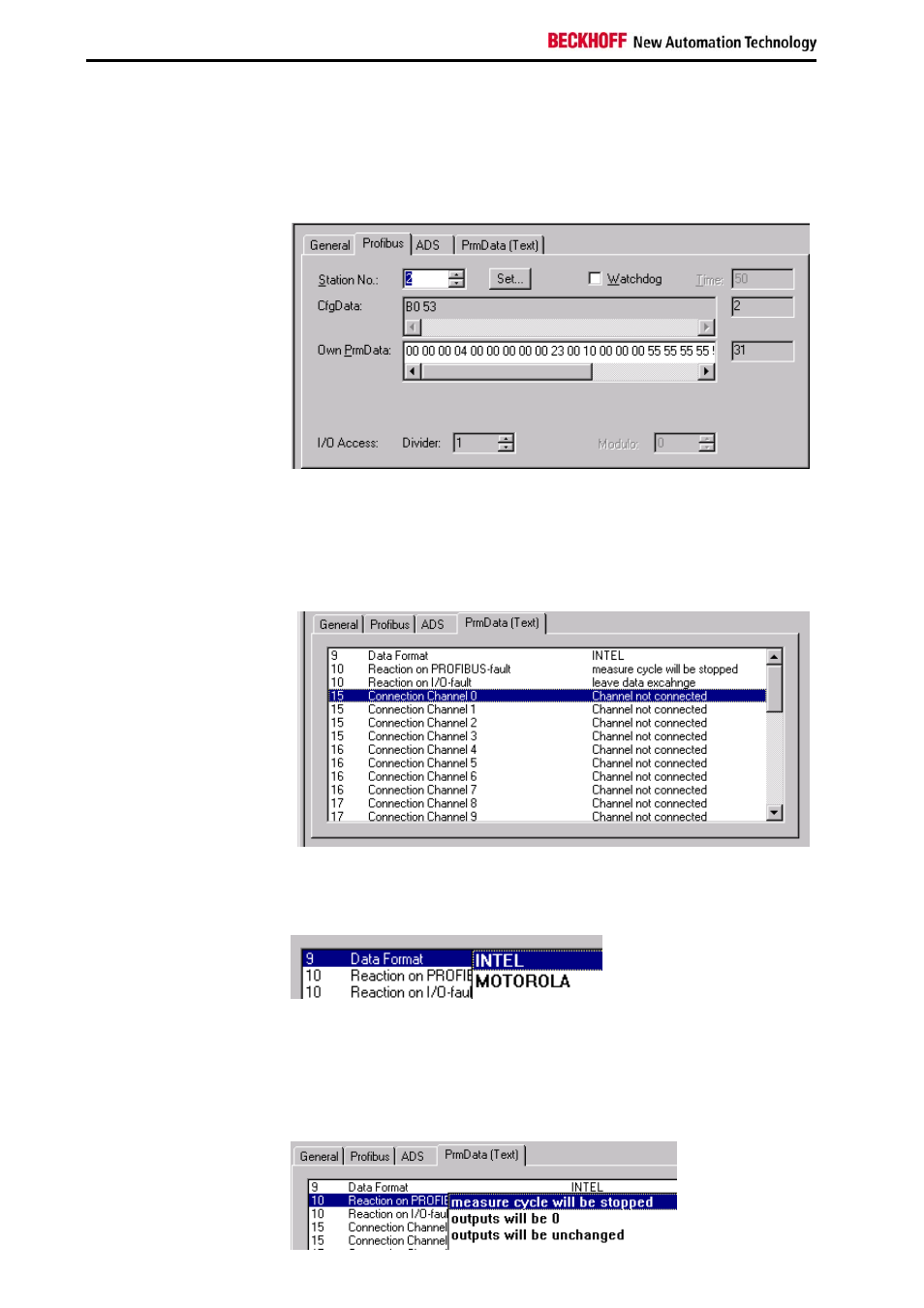

Configuration of the TC-Plug modules
Clicking with the mouse on a TC-Plug module in the I/O configuration tree
permits the necessary configuration settings to be made on the tabs:
The station number of the TC-Plug module must correspond to the station
number physically set with the rotary switches.
The "User Parameter Data" can easily be configured in a dialog box on the
PrmData(Text) tab.
The dialog box displays the most important TC-Plug PROFIBUS parameter
data in textual form, and this can be configured by the user. A double
mouse-click on one of the parameters will open a selection menu showing
the available parameters.
Data format
The analog thermocouple inputs can be evaluated either in Intel or in
Motorola format.
s
The reaction to a fieldbus or I/O error can be configured through
associated parameters.
Reaction on PROFIBUS-
fault
