I/O configuration
FM33xx 19

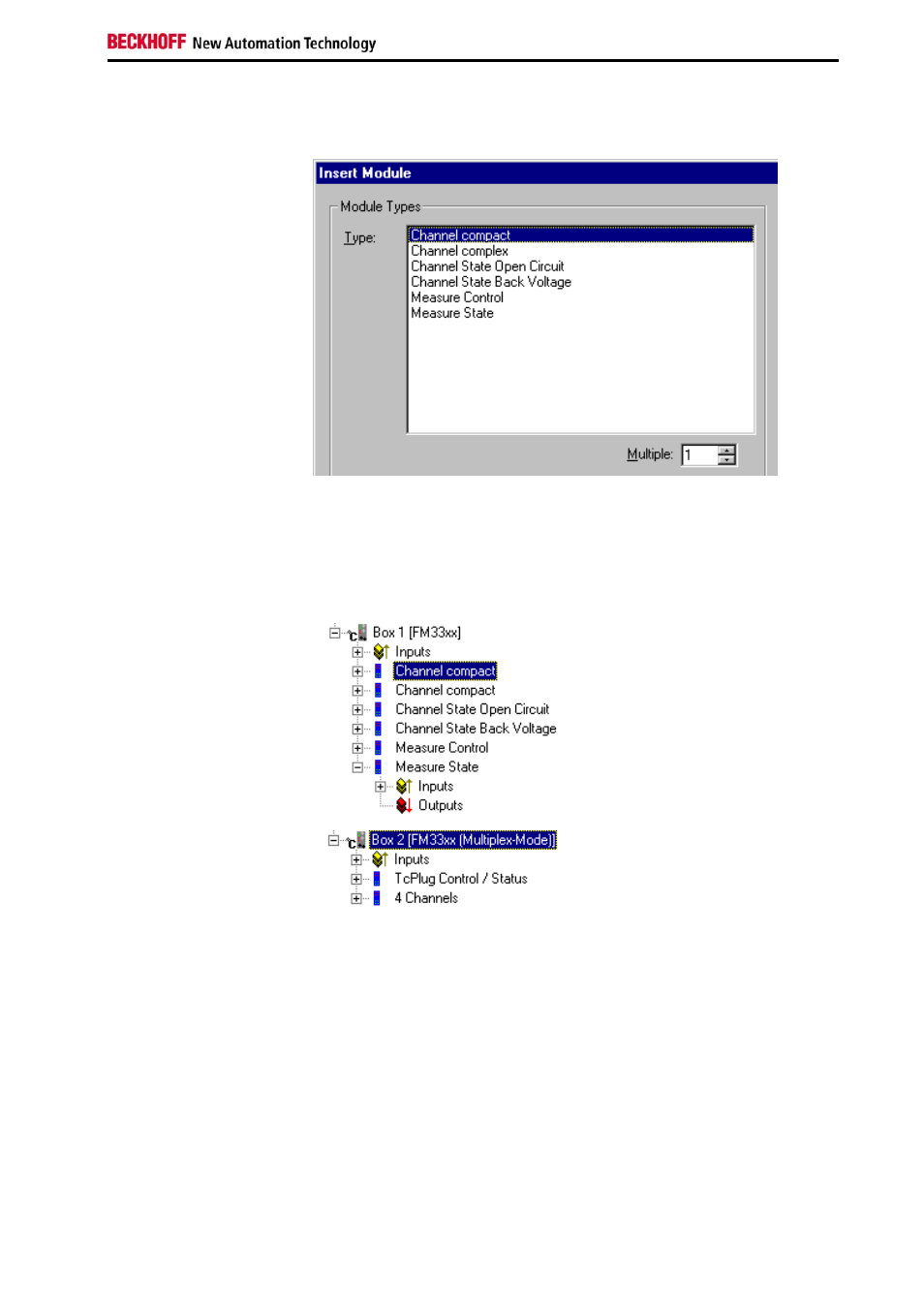

A dialogue with the available modules will appear.
The modules are added in the following order:
• Add Channel compact. Repeat n times for n channels;
• Add Channel State Open Circuit;
• Add Channel State Back Voltage;
• Add Measure Control;
• Add Measure State;
TC-Plug example
configuration in simple
mode with 2 channels
TC-Plug example
configuration in multiplex
mode
