3 User Interface
3.1 General operation
3.1.1 Buttons
The buttons have the following functions:
- Enter selected menu
- Enter edit mode
- Confirm selection/changes
- Menu selection up
- Select information field
- Next character in edit mode
- Up in table
- Menu selection down
- Select information field
- Previous character in edit mode
- Down in table
- Return to previous screen
- Undo, cancel and exit edit mode
- Switch content in the 'Custom readout 2' field

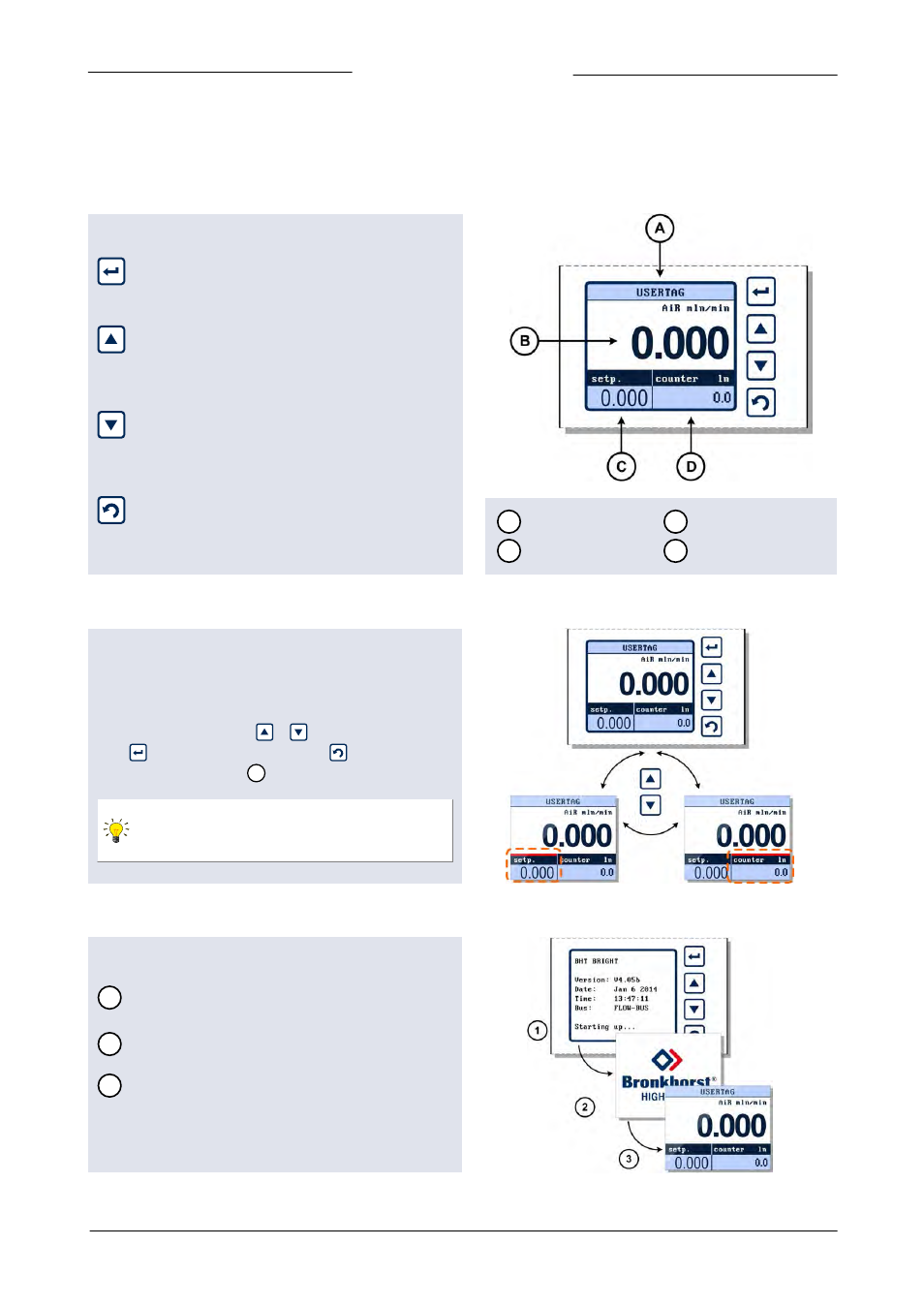

A Top line C Custom readout 1
B Measure readout D Custom readout 2
3.1.2 Display
The display is divided into 4 areas, ‘Measure readout’,
‘Custom readout 1’, ‘Custom readout 2’ and the 'Top line'.
The information in these areas can be configured by the user.
If an area contains a parameter which can be set or reset by
the operator, you can press
or to select this parameter.
Press to enter the edit mode or press to return to the
‘Measure readout’ screen B .
If ‘Custom readout 1’ is disabled, you can only
switch between ‘Measure readout’ and ‘Custom
readout 2’.
3.1.3 Power-up
When power-up, the E-8000 shows consecutively:
1
Firmware: version, date and time
Active bus type: FLOW-BUS or Local RS232
2 Bronkhorst High-Tech logo
3 Readout screen
