Reference Drawings:
Address Table, 1 Through 128 ............................................................... Drawing A-115078
Address Table 1; GEN IV Driver Address Dip Switch ............................ Drawing A-290261
The LED drivers perform the task of switching digits on and off within the scoreboard.
LED drivers are located inside of a driver enclosure. Refer to Figure 22 to view the location
and components of a driver enclosure, and refer to the Component Locations drawings in
Appendix A for the specific access location for each scoreboard model.
Most scoreboards use either 8- or 16-column drivers (Figure 23).

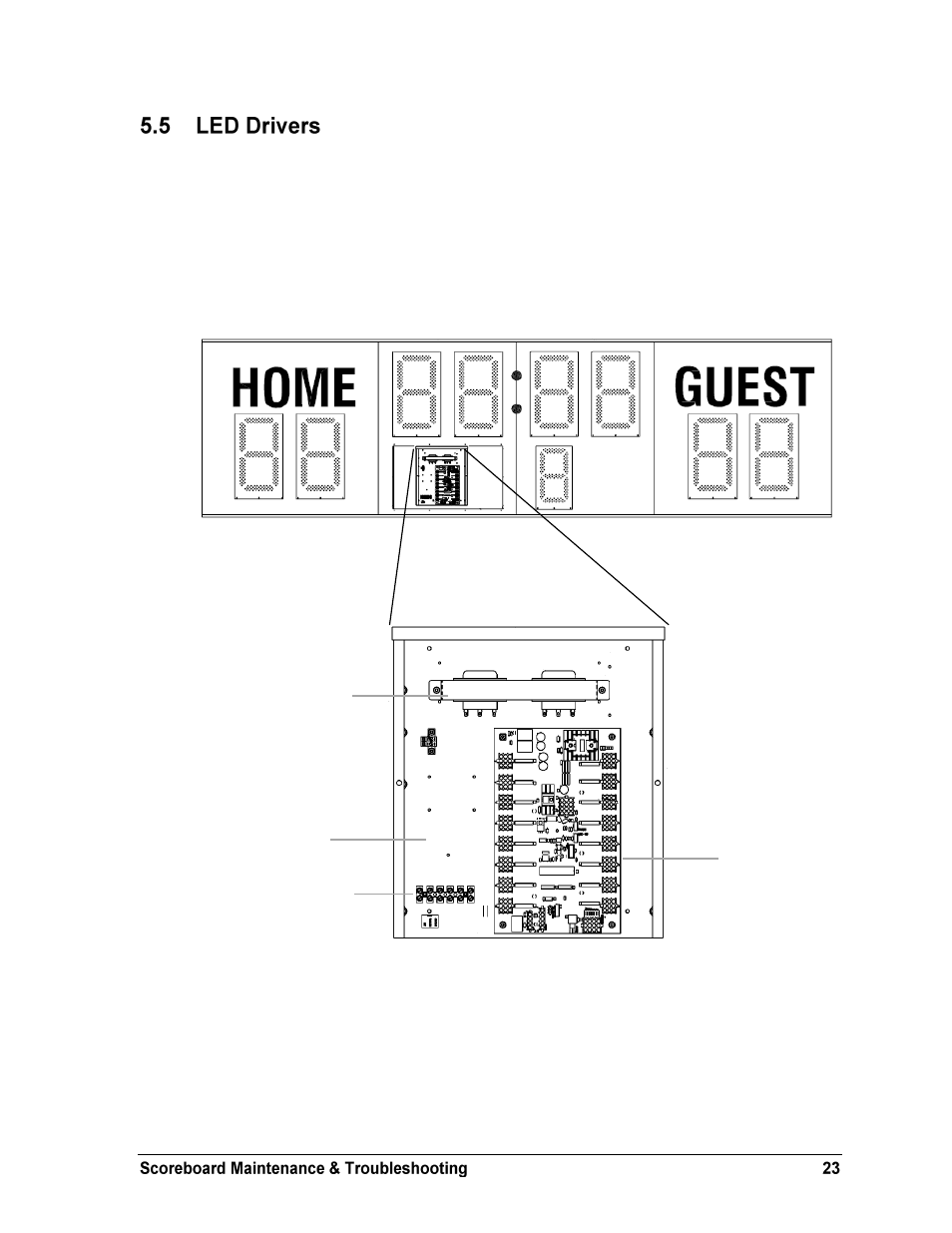

Figure 22: Driver Enclosure Location & Components
The access panel has
been removed to show
the driver enclosure.
Transformer
Power Terminal Block
16-column Driver
Location of Optional
Horn Switch Card
