Scoreboard Maintenance & Troubleshooting
When troubleshooting driver problems, three LEDs labeled DS1, DS2, and DS3 in Figure 23,
provide the following diagnostic information:
LED Color Function Operation Summary
DS1 Green Power Steady on DS1 will be on and steady to
indicate the driver has power.
DS2 Red Signal RX Steady on
or blinking DS2 will be on or blinking when the
driver is receiving a signal and off
when there is no signal.
DS3 Amber Status Blinking DS7 will be blinking at one second
intervals to indicate the driver is
running.
Note: While it is necessary to have the scoreboard powered on to check the LED indicators,
always disconnect scoreboard power before servicing.

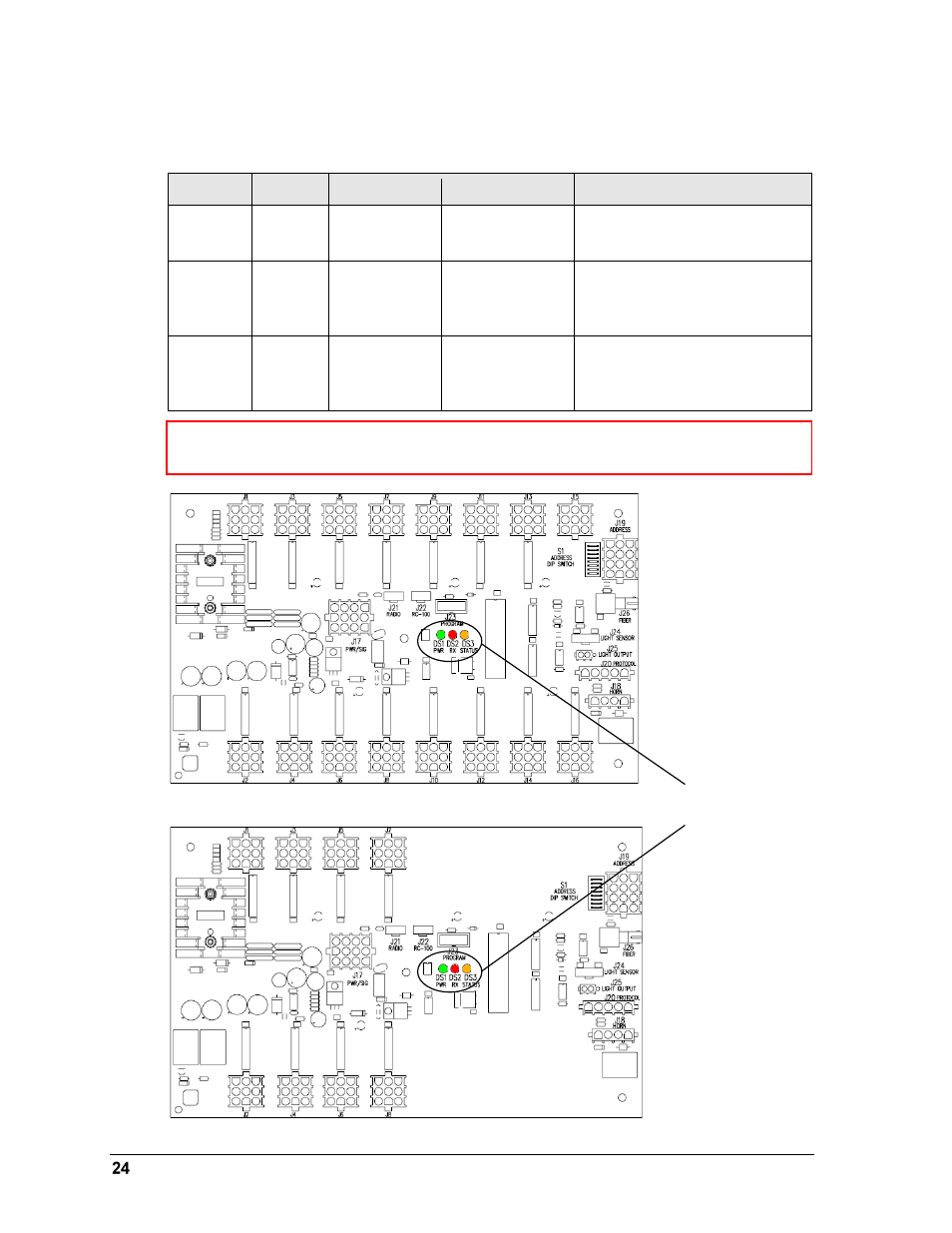

Figure 23: Driver Status Indicators
Driver Status Indicators
16-column Driver
8-column Driver
Note:
While it is necessary to have the scoreboard powered on to check the LED indicators,
always disconnect scoreboard power before servicing.
