10 Electrical Installation
Refer to Figure 13 for
external fiber conversion box
connections and Figure 14
for internal connections and
component locations.
Refer to Detail “A” in
Drawing C-984140 for
analog backup connection
and Detail “B” for fiber
connection. Drawing A-
1095894 provides a detailed
wiring schematic.

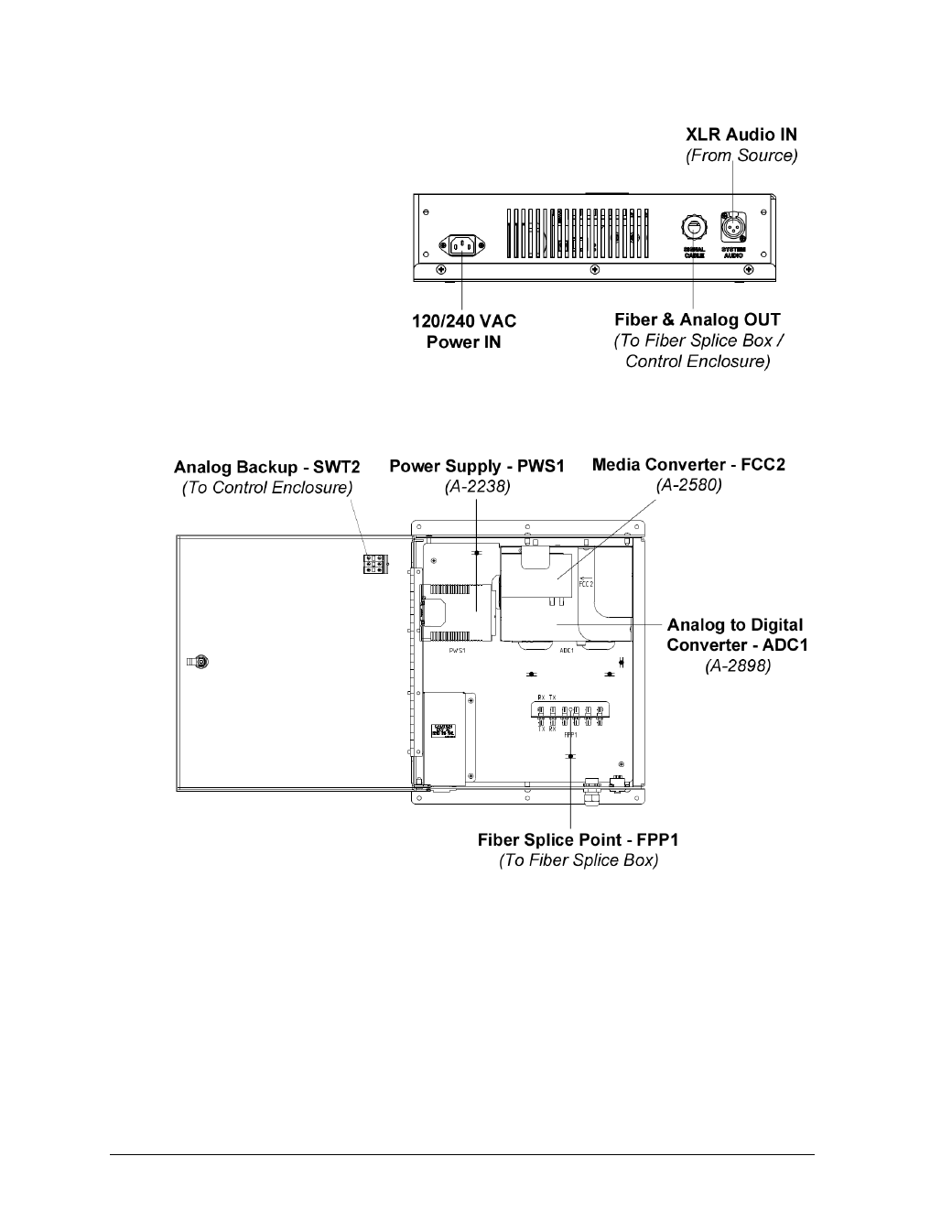

Figure 13: External Fiber Conversion Box Connections
Figure 14: Internal Fiber Conversion Box Connections & Components (Cover Open)
