3. Attaching New Speaker Mesh
When ordered through Daktronics, the mesh has a line with a series of tick marks
printed on the front (Figure 16). These tick marks are used to indicate the location of
the tension clips and mandrels.
a. Place a mandrel, smooth side up, centered on the tick mark.
b. Fold the mesh around the mandrel. Ensure the groove in the mandrel is
towards the inside of the mesh (Figure 17).
c. Snap a tension clip over the mandrel and mesh (Figure 18). Do not try to
drive both ends of the clip down onto the mandrel and fabric at the same
time; snap one end down and then the other.
d. Continue to place a mandrel and tension clip on every tick mark.

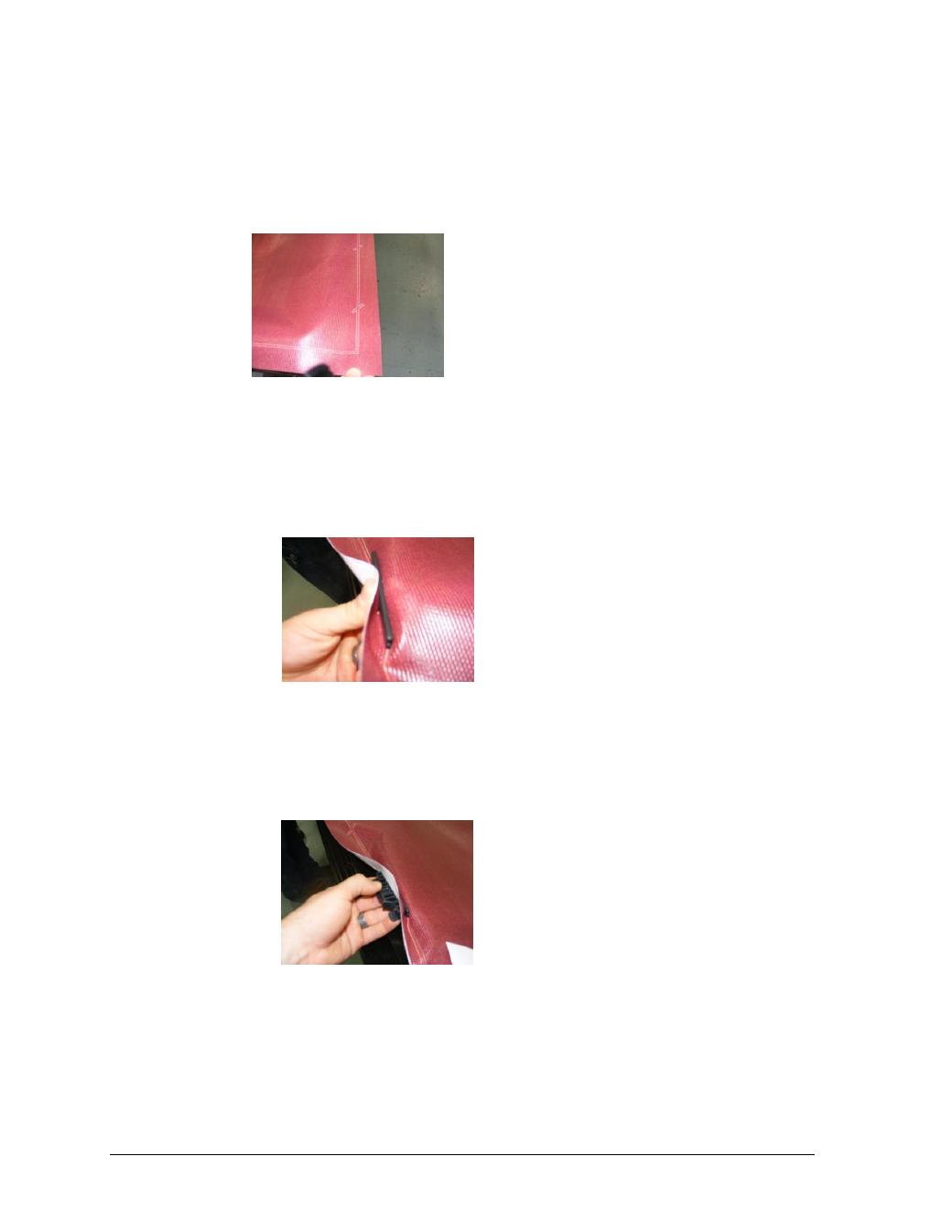

Figure 16: Tick Marks on Mesh
Figure 17: Folding Mesh
Figure 18: Attach Tension Clip
