8 DR ® 5-TON WOOD SPLITTER
Specifications
Motor 120V~50Hz, 1500W IP54
Log Capacity
Length 20 inches
Diameter* 2 - 10 inches
Splitting Force 5 ton
Hydraulic Pressure 2,300 psi
Hydraulic Fluid Capacity 3.75 quarts
Hydraulic Fluid Type (or
equivalent) SHELL Tellus 22
MOBIL DTE 11
ARA Vitam GF 22
BP Energol HLP-HM 22
Machine Length 37 inches
Machine Width 11 inches
Machine Height 20 inches
Machine Weight 93 lbs
*The diameter of the log is indicative - a small log can be difficult to split when it contains knobs or a particularly tough fiber. On
the other hand, it may not be difficult to split logs with regular fibers even if its diameter exceeds the max. figure indicated above.
Unpacking the DR 5-Ton Wood Splitter
Tools Needed:

Utility Knife
1. Cut the tape that secures the top box flaps with a Utility Knife.
2. Remove the Carrying Handle Brackets, Carrying Handle, Rolling Wheel
Bracket w/Wheels, Control Lever Guard, and Hardware Bag from the top
section of the foam insert (Figure 2).
3. Pull the foam insert from the shipping box.
4. Tip the shipping box onto its side and carefully slide the Splitter from the
box. Position the Splitter upside down on a flat surface (Motor up, Wedge
and Log Ram down).

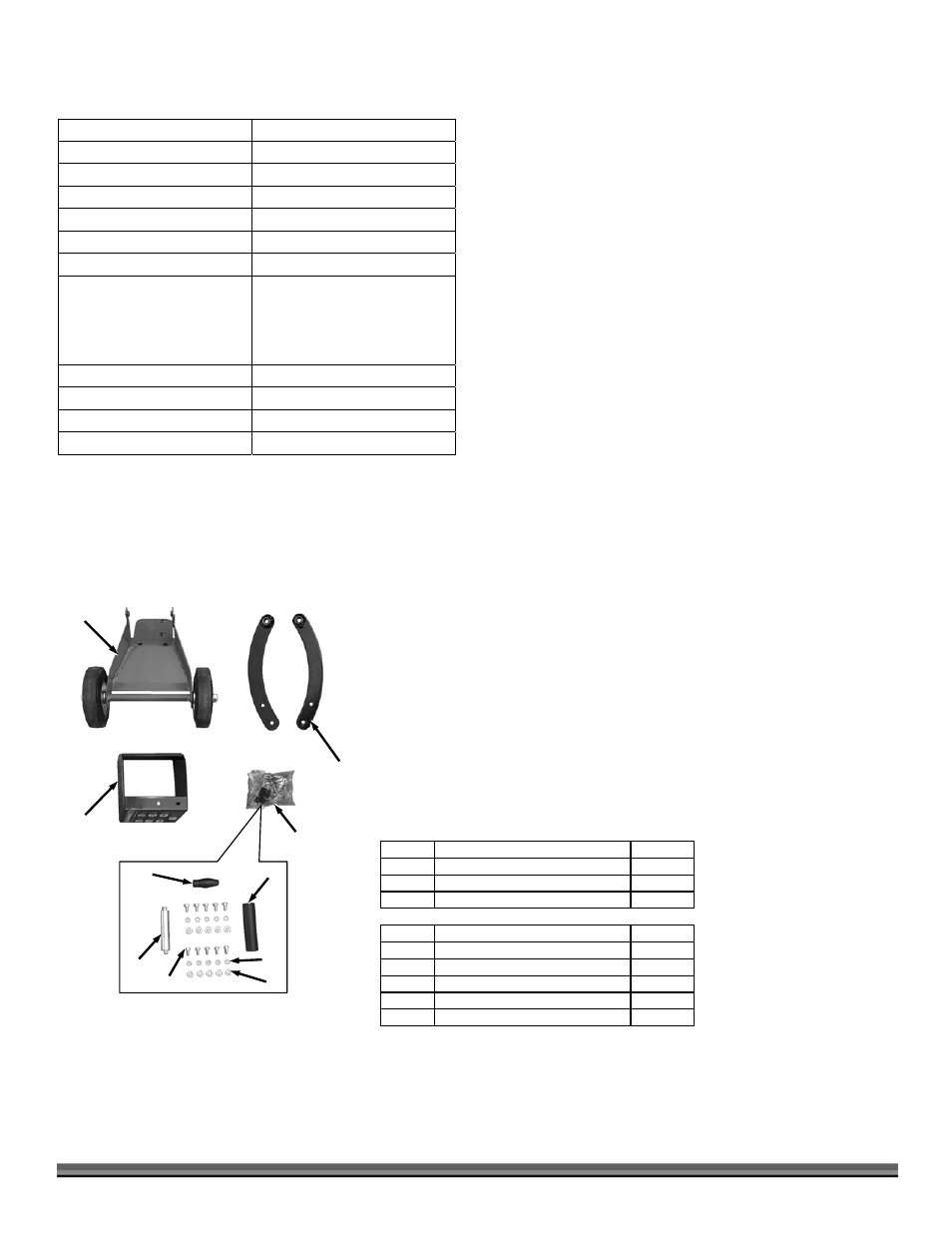

Shipping Box Parts
Item Description Qty
1 Wheel Assembly 1
2 Control Lever Guard 1
3 Front Handle Bracket 2
Hardware Bag
4 Control Lever Grip 1
5 Front Handle Grip 1
6 Front Handle Shaft 1
7 Screw, HHC, M6 x 12 10
8 Washer, SpringLock, M6 10
9 Washer, Flat, M6 10
Compare the Parts (Figure 2 and Table above) with the parts you removed from the Shipping Box. If you have any Questions or if
you need assistance, contact us at www.DRpower.com or call Toll-Free 1-800-DR-OWNER (376-9637).
Hardware
Bag
1
2
3
4 5
6
7
8
9
Figure 2
