Pub. 42004-724L2iQG
ICS Class I, Div. 2 Weatherproof Page/Party
®
Station Quick Installation Guide Page 3 of 3
f:\standard ioms - current release\42004-xxxxqg quick guides\42004-724l2iqg.doc
11/14

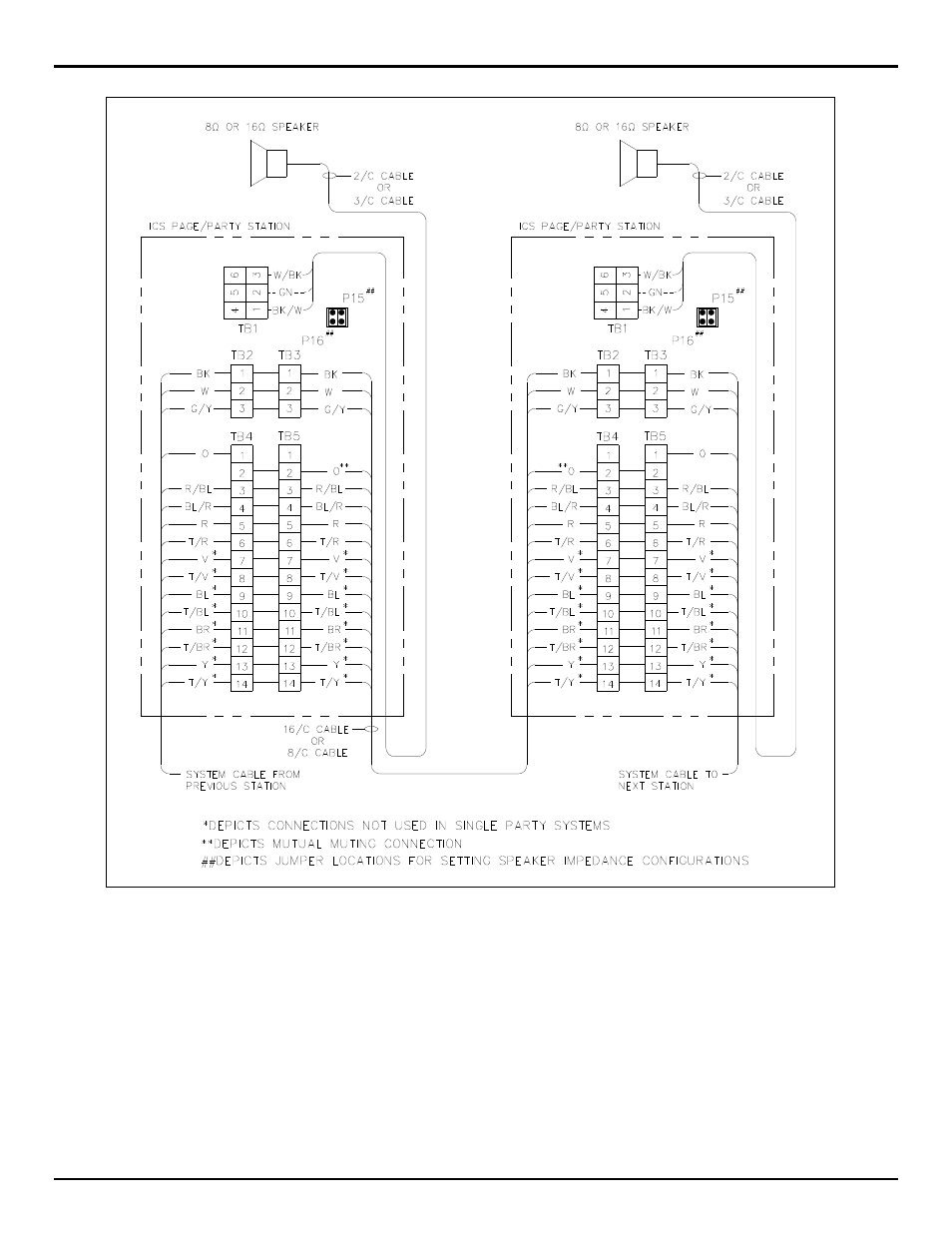

Figure 3. Typical installation wiring configuration
N OTE : Station input power can be through system cable or through a separate power source cable.
See Pub. 42004-724L2 for the possible beacon, RTU activation, and speaker impedance configurations.
Front Cover Reattachment
Connect any cable harnesses that were disconnected during mounting. Place the front cover inside the rear enclosure, being careful
not to pinch any cables. Attach the front cover with the four screws and washers provided. Torque the screws to 10–12 in-lbs
(1.13–1.36 n-m).
NRTL Listed for USA and Canada ......................................................................................... Class I, Groups A, B, C, and D, Division 2;
Class II, Groups F and G, Division 2;
Class III, Division 2 Hazardous Locations
Temperature code, T4A – USA
T3C – Canada
