GAI-Tronics 12118-012 I/O Termination Connection Module Kit for LE200RM User Manual
Page 2
Advertising
Pub. 42003-226A
M
ODEL
12118-012
C
ONNECTION
M
ODULE
K
IT
–
I/O
T
ERMINATION
Page:
2 of 3
f:\standard ioms - current release\42003 kit manuals\42003-226a.doc
09/09

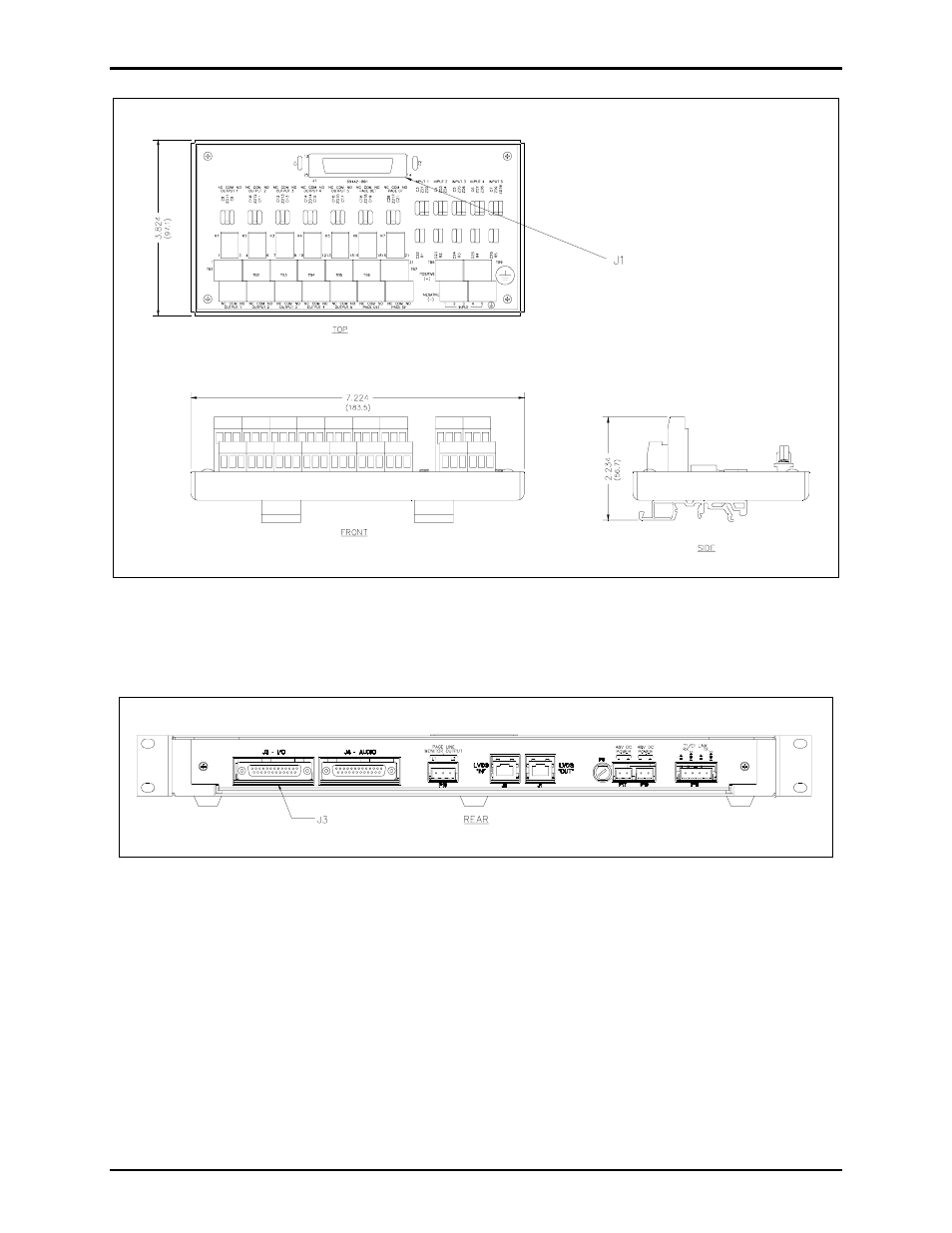

Figure 1. Line Extender Audio Termination Connection Module
3. Plug the other end of the DB25 cable assembly into J3 (I/O) on the rear of the LE200-RM Line
Extender as shown in Figure 2, and secure it by tightening the DB25 connector jackscrews.
Figure 2. LE200-RM Line Extender Rear Panel
4. Refer to Table 1 and Table 2 for field wiring connections to the I/O Connection Module.
5. Refer to the LE200-RM manual (GTC Pub. 42004-392) for additional operational information.
