Model 12830-001 DHS/DHF PCBA Replacement Kit
Page
2 of 4
f:\standard ioms - current release\42003 kit manuals\42003-261a.doc
06/13

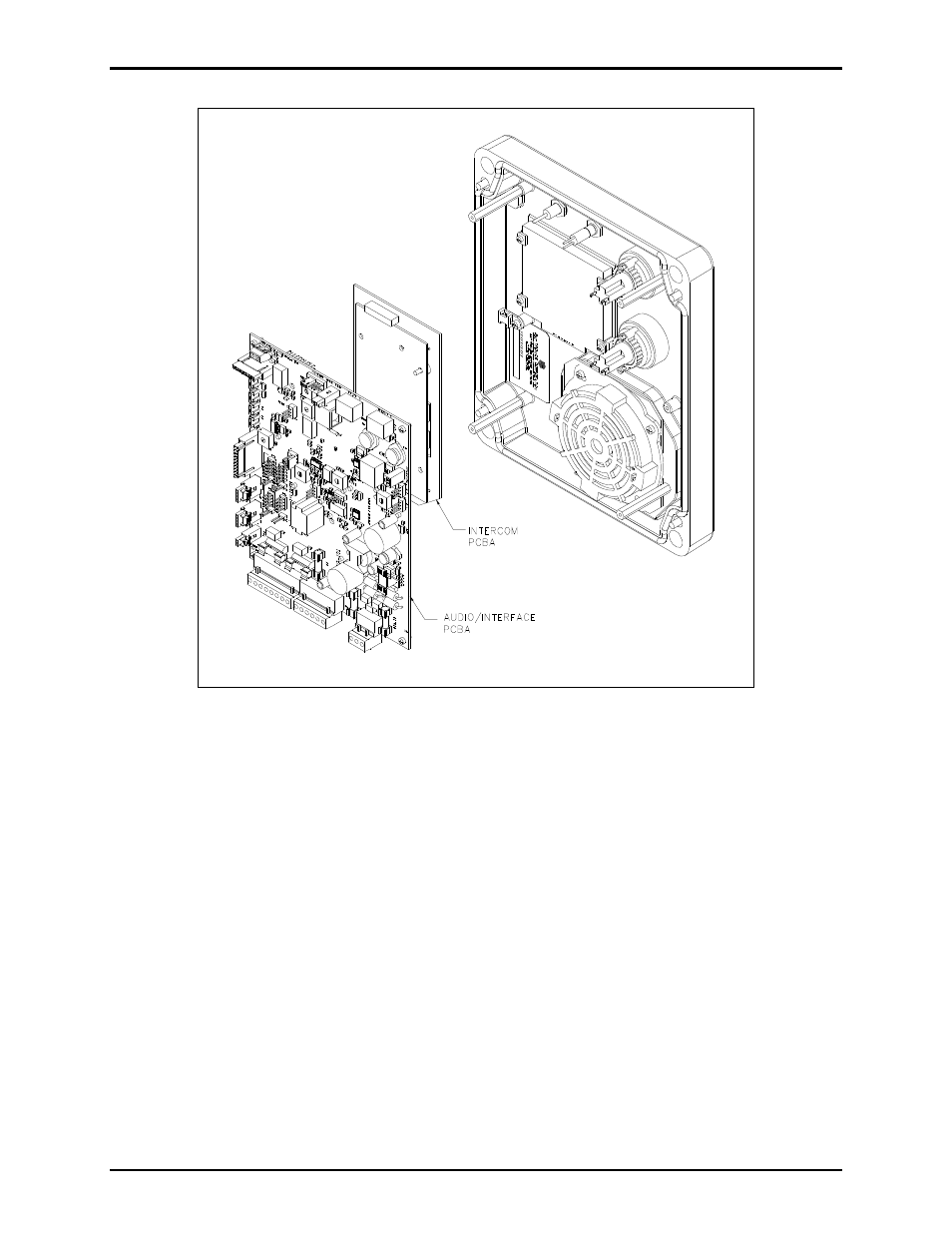

Figure 1. Front Panel Assembly with Intercom and Audio Interface PCBAs
3. Remove the four screws holding the Audio Interface PCBA in place and remove it. The Intercom
PCBA is attached to the rear side of the Audio Interface PCBA. See Figure 1. Place the screws in a
safe location.
