1-10
SPECIFICATIONS & UNIT MOUNTING
X-Y Command THC
Product Configuration Manual
Plasma Interface Assembly
Mount the plasma interface assembly close to the plasma power supply. Close proximity will
allow ease in routing and connecting control and process signal wires between the units.
The unit can be mounted in any position. See Figure 1-9 for mounting details.

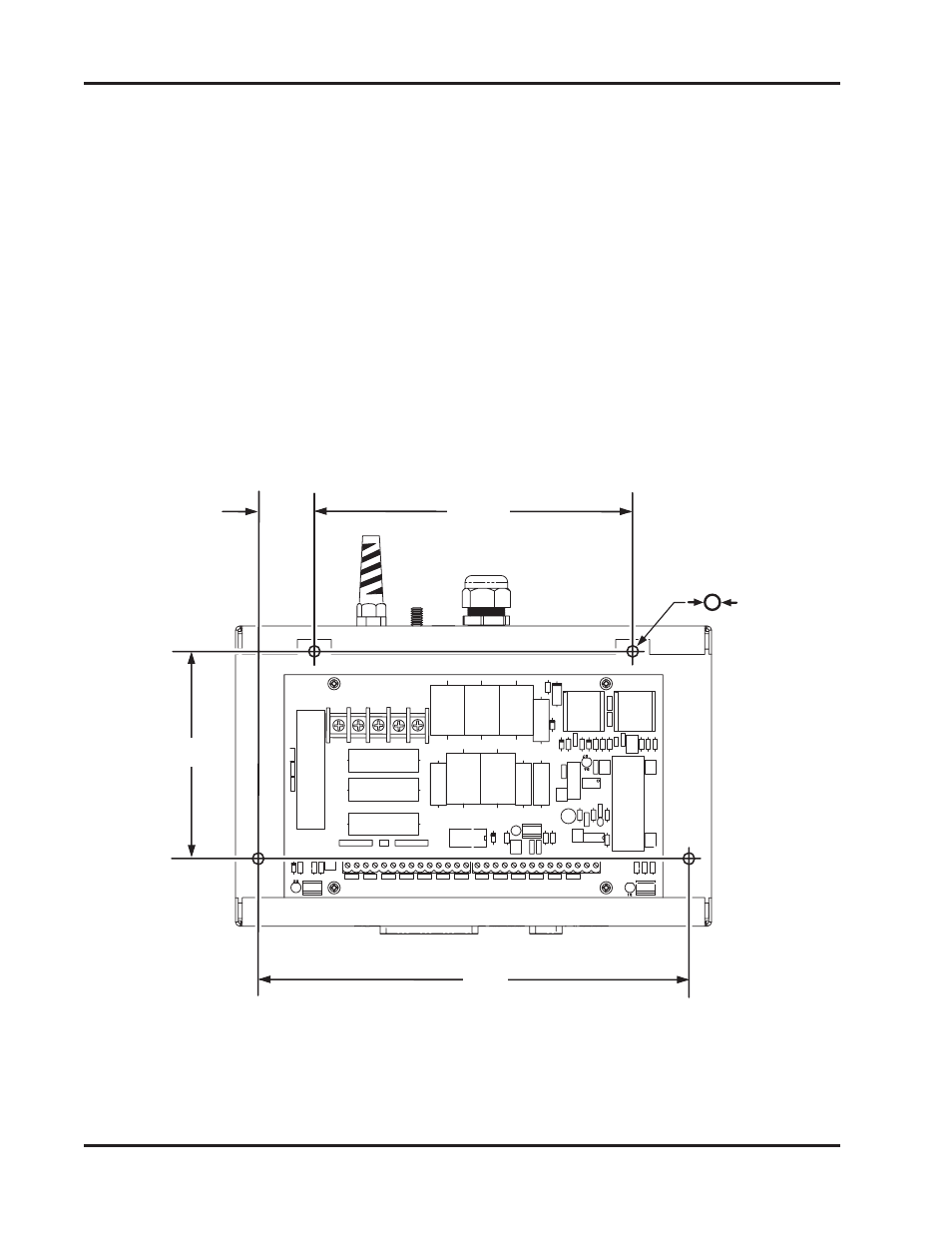

Figure 1-9 THC Control Module Mounting Details
THC.99
0.25"
(6 mm)
7.0"
(178 mm)
4.6"
(117 mm)
9.5"
(241 mm)
1.25"
(32 mm)
HT4400 INSTALLATION
NOTE: Instructions to remove the plasma interface PCB from the interface enclosure
and install it into the HT4400 power supply are included in the CommandTHC
instruction manual 802780.
The plasma interface enclosure is not used for the HT4400 installation.
