INSTALLATIONS
14
MI987 User’s Manual

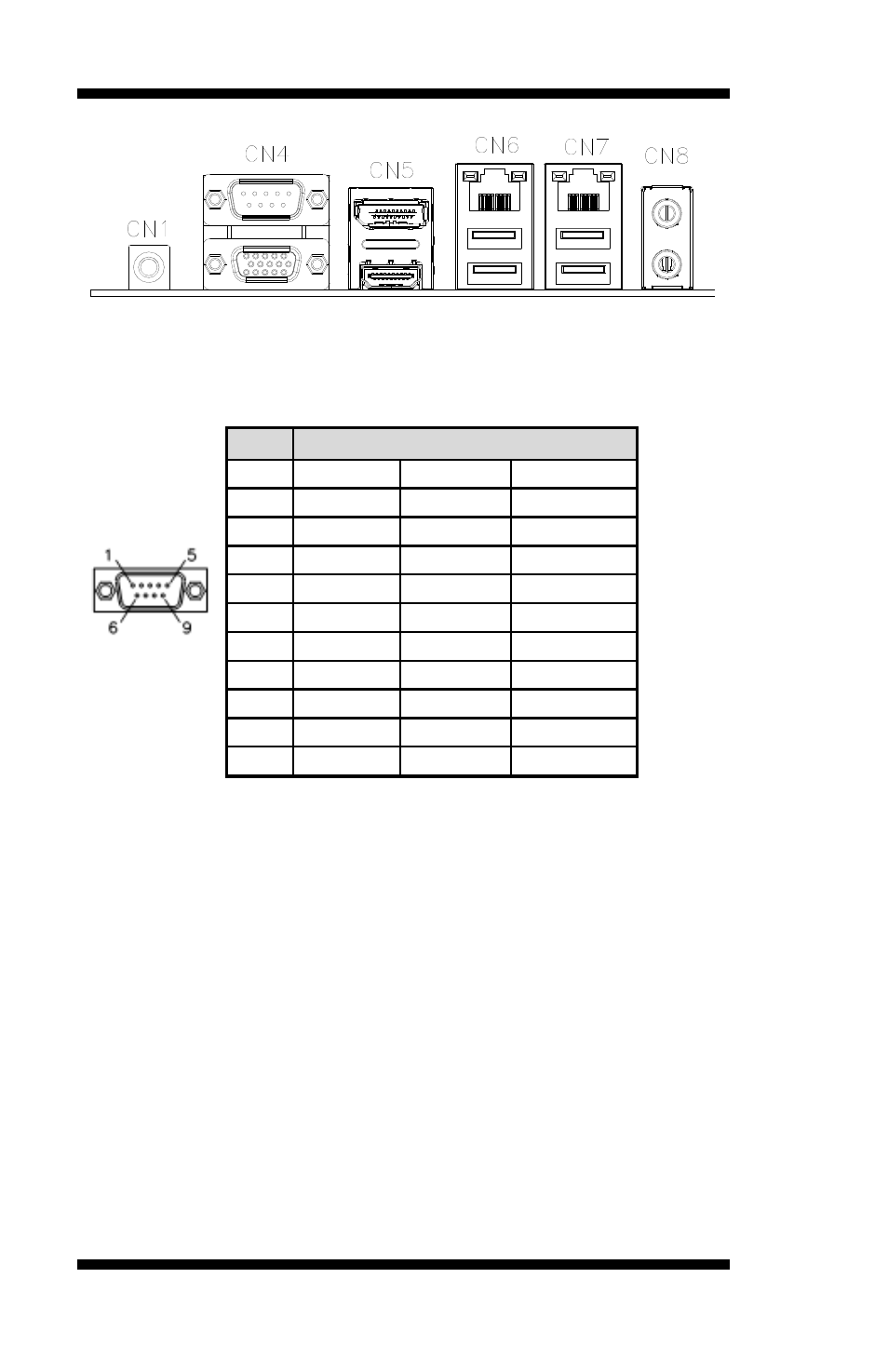

CN1: DC-IN Connector (+19V DC-in)
CN4: CRT/COM1 Connector
COM1
Pin #
Signal Name
RS-232
R2-422
RS-485
1
DCD
TX-
DATA-
2
RX
TX+
DATA+
3
TX
RX+
NC
4
DTR
RX-
NC
5
Ground
Ground
Ground
6
DSR
NC
NC
7
RTS
NC
NC
8
CTS
NC
NC
9
RI
NC
NC
10
NC
NC
NC
CN5: DP/HDMI Connector
CN6: Gigabit LAN (Intel I217LM) / USB3.0
CN7: Gigabit LAN (Intel I211AT) / USB3.0 (EF Ver. with
USB2.0)
CN8: Audio Connector
CN2, CN3: SATA3 Connectors
