INSTALLATIONS
18 MI987 User’s Manual

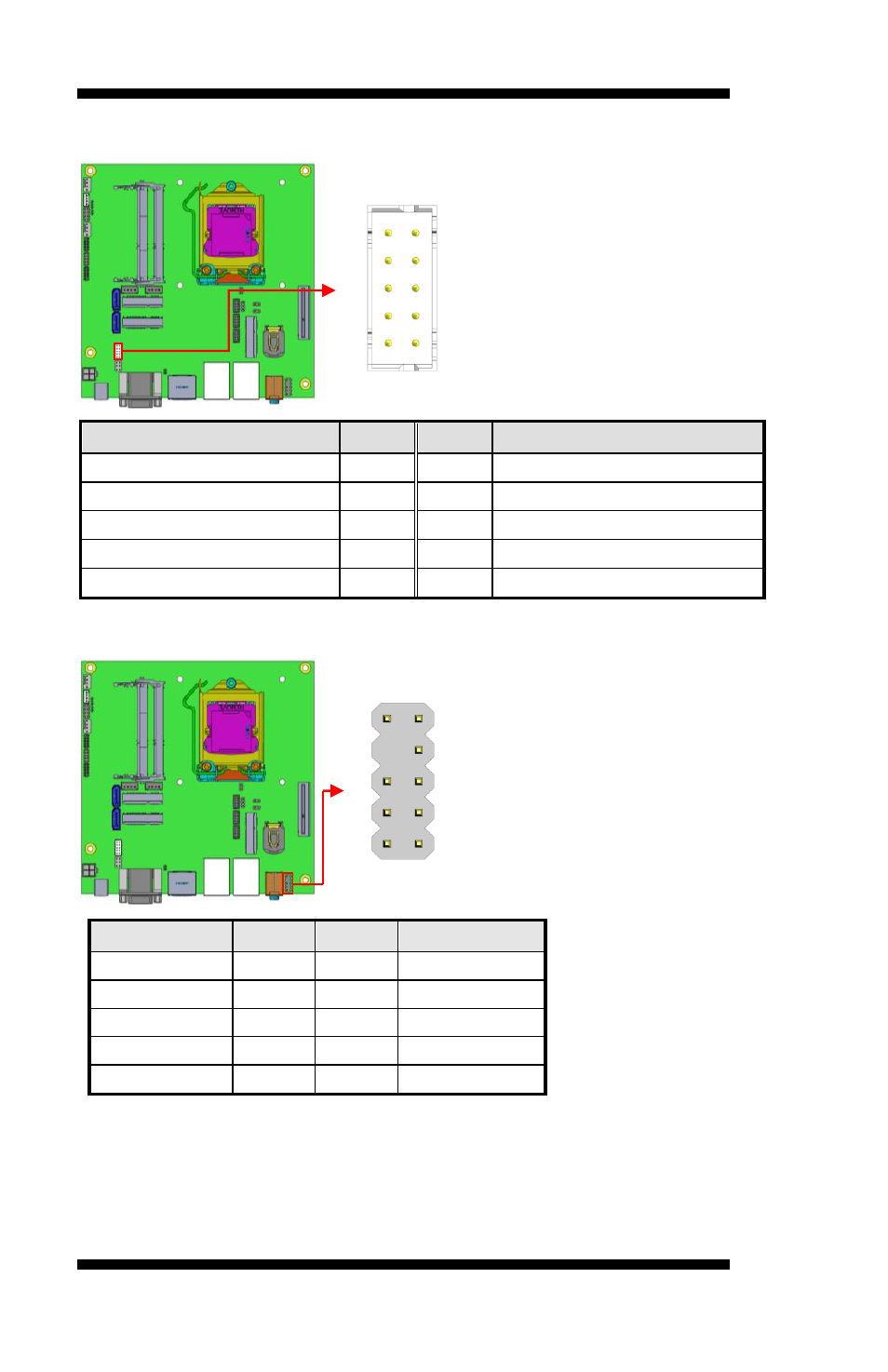

J8: COM2 Connector
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 2 RXD, Receive data
TXD, Transmit data 3 4 DTR, Data terminal ready
GND, ground 5 6 DSR, Data set ready
RTS, Request to send 7 8 CTS, Clear to send
RI, Ring indicator 9 10 Not Used
JP9: Audio Front Header
Signal Name Pin # Pin # Signal Name
MIC2_L 1 2 Ground
MIC2_R 3 4 Presence#
Line2_R 5 6 MIC2_ID
Sense 7 8 NC
Line2_L 9 10 Line2_ID
10
2
9
1
9
1
10
2
