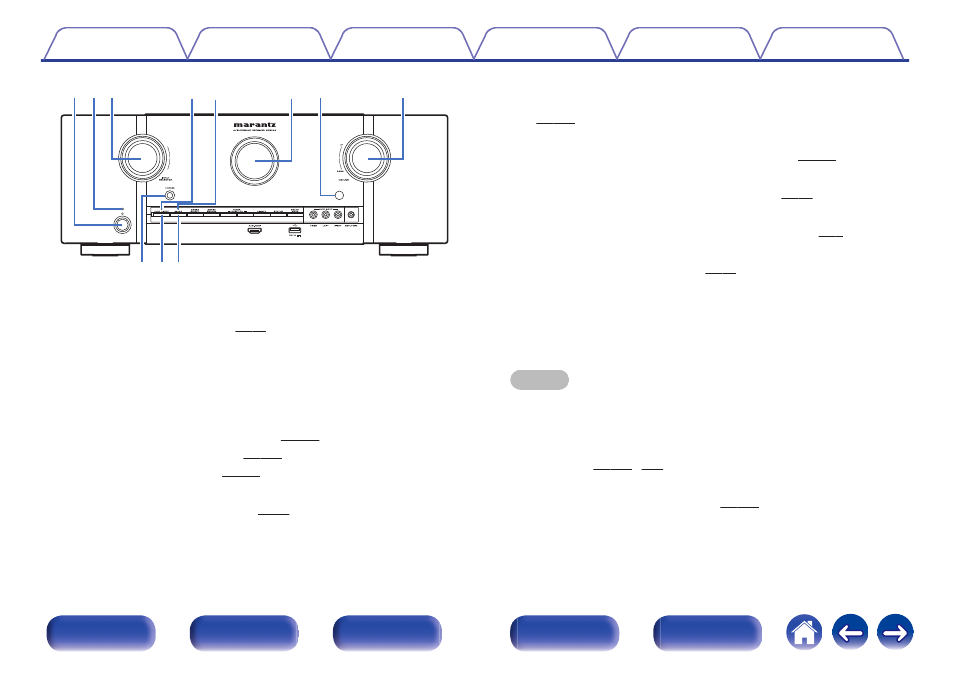

e
w
q
y
t
r
u
i
Q0Q1
o
A
Power operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 58)
B Power indicator
This is lit as follows according to the power status:
0
Off: Power on
0
Red: Normal standby
0
Orange:
0
When “HDMI Pass Through” (v p. 166) is set to “On”
0
When “HDMI Control” (v p. 166) is set to “On”
0
When “IP Control” (v p. 200) is set to “Always On”
C INPUT SELECTOR knob
This selects the input source. (v p. 58)
D PURE DIRECT indicator
This lights when the “Pure Direct” mode is selected as the sound mode.
E M-DAX indicator
This lights when the M-DAX mode is selected. (v p. 156)
F Display
This displays various pieces of information. (v p. 16)
G Remote control sensor
This receives signals from the remote control unit. (v p. 8)
H VOLUME knob
This adjusts the volume level. (v p. 59)
I Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
J PURE DIRECT button
This switches the sound mode between Direct, Pure Direct and Auto
surround. (v p. 120, 121)
K M-DAX button
This switches the M-DAX mode. (v p. 156)
14
