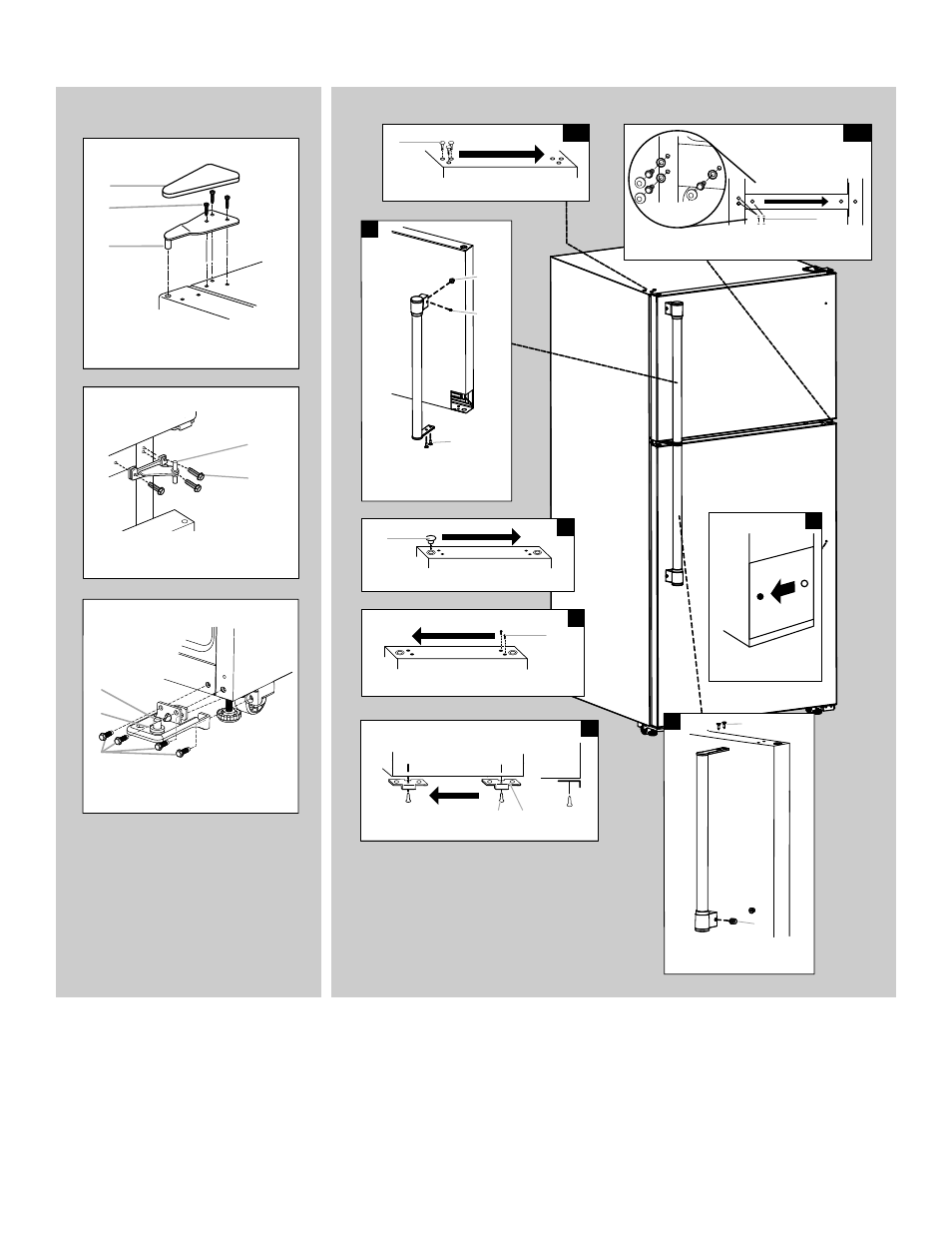

Style 2–Standard Doors
Door Removal &
Replacement
Door Swing Reversal (optional)
A. Door Hinge Hole Plug
A. Door Handle Sealing Screws
3
4
A
A
A. Cabinet Hinge Hole Plugs
1-2
A
Top Hinge
B. 5 / 16 " Hex-Head Hinge Screws
C. Top Hinge
B
C
A. Top Hinge Cover
A
A. Door Handle
Hole Cap
7
1-1
A. 5 /
16
" Hex-Head Hinge Screws,
Dome Caps and Dome Cap Washers
A
Center Hinge
B. 5 /
16
" Hex-Head Hinge Screws
A. Center Hinge
A
B
A. Bottom Hinge
Bottom Hinge
B. Washer
C. 5 / 16 " Hex-Head Hinge Screws
A
B
C
A. Door Stop Screw
B. Door Stop
B A
5 Side View Front View
A. Flat-Head Handle Screw
B. Setscrew
6
A
A. Shoulder Screw
B. Setscrew
C. Flat-Head Handle Screw
2
B
B
C
A
