Maytag MRT519SZDM User Manual
Page 8
8
7. Using the screw removed earlier, fasten the door stop to the
bottom of the freezer door.
8. Place the handle on the shoulder screw and push the handle
toward the door until the mounting base is flush against the
door.
9. Fasten the bottom of the handle to the bottom of the freezer
door.
10. Tighten all screws. Set aside the freezer door until the hinges
and refrigerator door are in place.

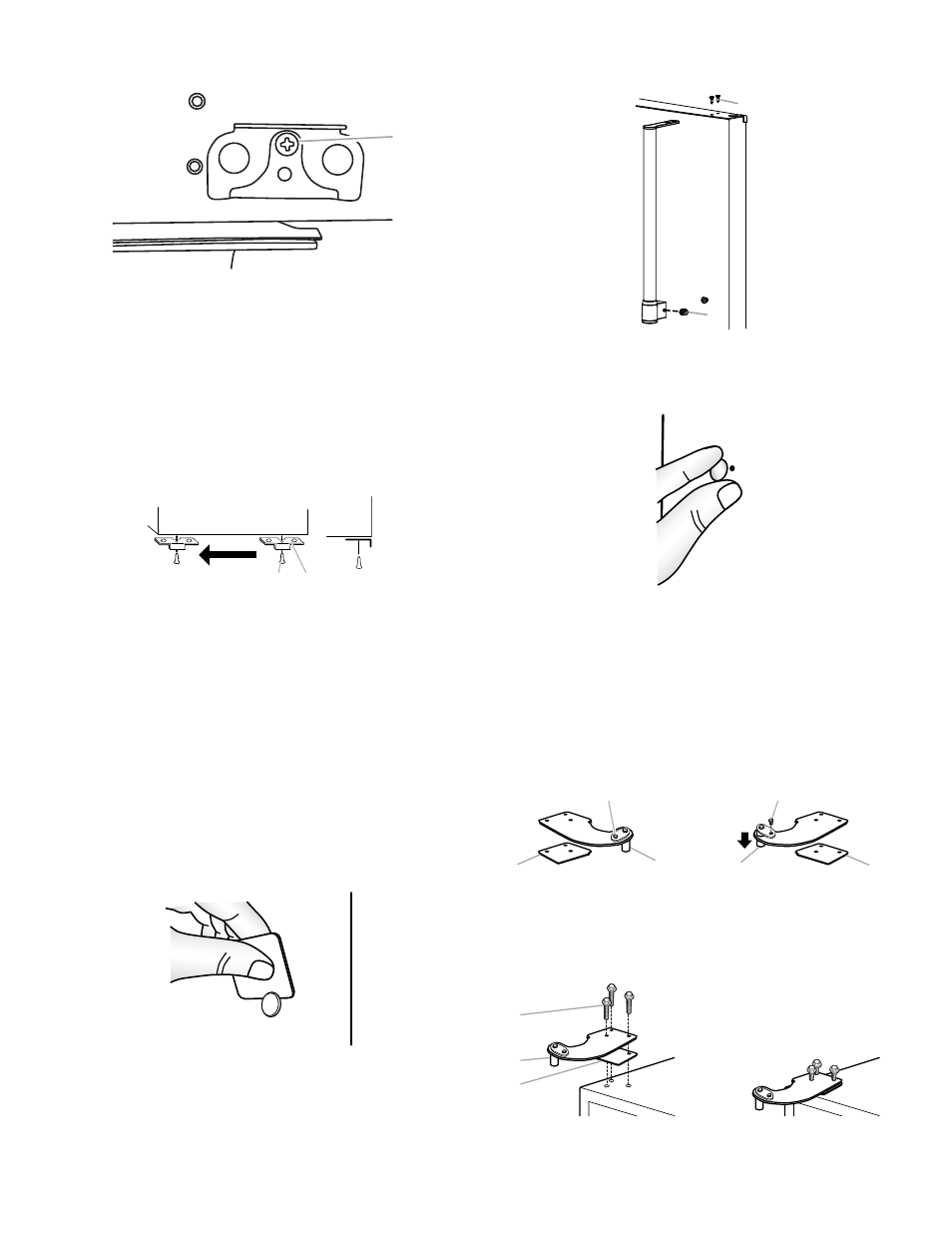

Reverse Refrigerator Door
1. Remove the door stop from the bottom of the refrigerator
door.
2. Replace the door stop on the opposite side of the refrigerator
door, making sure that the hole in the door stop plate is
aligned perfectly with the hole for the bottom hinge pin.
3. Fasten the door stop to the door.
4. Remove the door handles.
■
Remove the screws from the top of the refrigerator door
handle.
■
Remove the setscrew from the lower part of the handle.
■
Pull the handle away from the door to release it from the
shoulder screw. Keep all parts together.
5. Remove and discard the plug covering the hole on the
opposite side of the door, where the refrigerator door handle
will be installed.
6. Remove the shoulder screw and its washer from the left-hand
side of the door and fasten it into the hole that was behind
the cap.
7. Place the handle on the shoulder screw and push the handle
toward the door until the mounting base is flush against the
door.
8. Fasten the top of the refrigerator handle to the top of the
refrigerator door.
9. Cover the remaining hole with the plug (provided).
10. Remove door hinge hole plug from the refrigerator door.
Move to opposite side.
11. Tighten all screws. Set aside refrigerator door until bottom
hinge is installed on the opposite side of the refrigerator.
Reverse Top Hinge - Contour Door Models Only
1. Remove the screw attaching the hinge pin to the hinge. Turn
the hinge over so that it is pointing in the opposite direction.
2. Place the plastic spacer beneath the hinge so that it will be
between the hinge and the cabinet, making sure the holes are
aligned.
3. Fasten the top hinge to the opposite side of the cabinet,
inserting the screws only halfway, so you will be able to
replace and align the freezer door later.
A. Door stop screw
A. Door stop screw
B. Door stop
A
A
B
A. Flat-head handle screws
B. Setscrew
A. Plastic spacer
B. Hinge pin screw
C. Hinge pin
A.
⁵⁄₁₆
" Hex-head hinge screws
B. Top hinge pin
C. Plastic spacer
A
B
A
C
C
A
B
B
C
B
A
