2.6 Setting CB-7011/D, CB-7012/D,
CB-7013/D, CB-7014/D
Step1: Check a ConvN(here N means 0 to 31) to start the setting CB-7000 module
configuration. In this example, we check Conv0 for demos purpose as shown in fig 2-
9. A user can check any ConvN to start its module configuration setting. After
checked, a window titled setting CB-7000 Module Configuration will pop up. We
have to set the module type, baud rate, module address and checksum in this window
for this DDE conversation working properly.

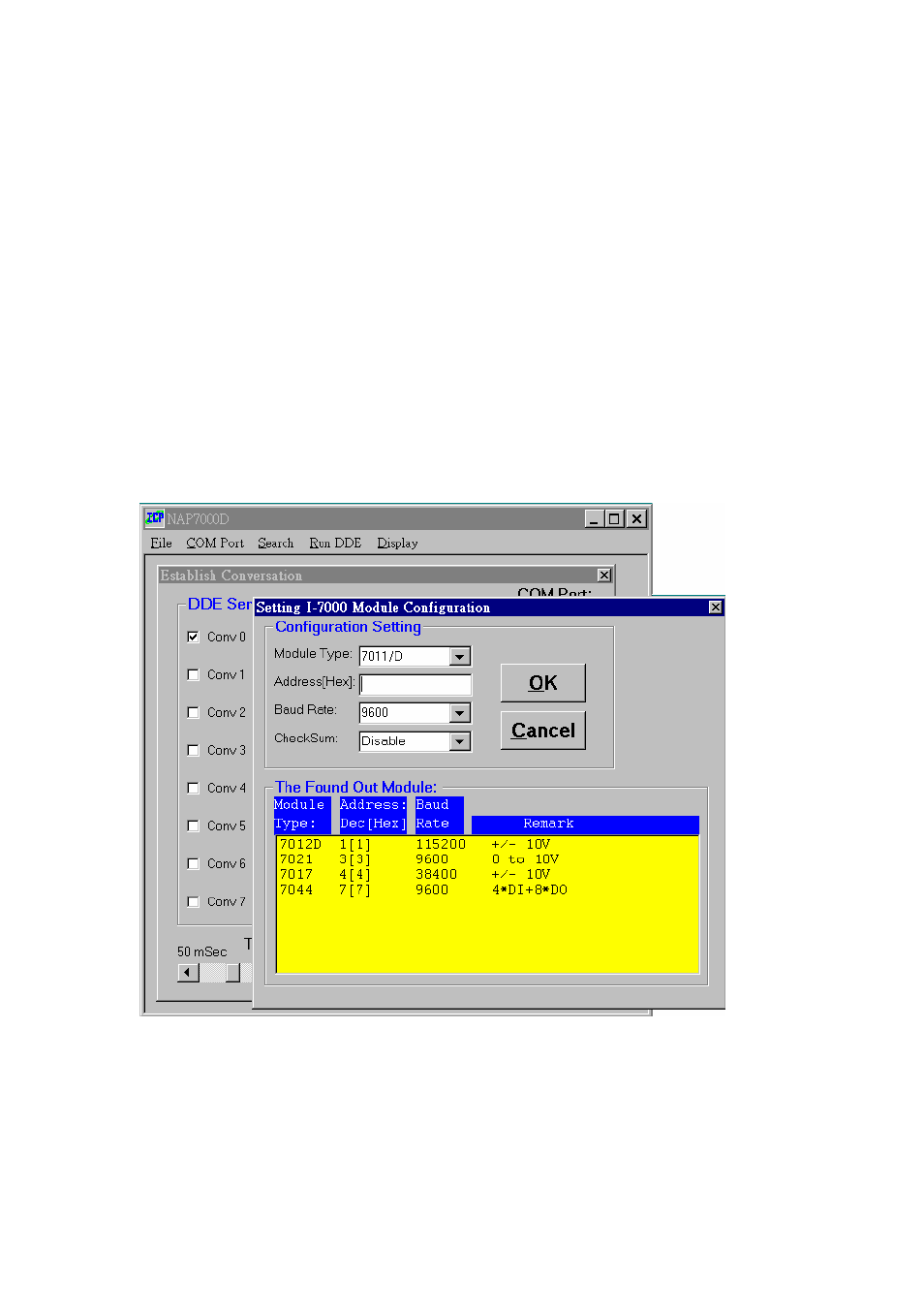

Fig 2-9 Check a ConvN to start module configuration setting.
