2.11 Setting CB-7044, CB-7050, CB-
7060
Step1:
Check a ConvN(here N means 0 to 31) to start the setting CB-7000 module
configuration. In this example, the Conv17 is checked.
Step 2:
Select the desired module type as Fig 2-10 shown(method 1 or method 2).
In this case, please select 7044, 7050 or 7060. In this examples, the 7044 is selected.
Step 3:
After selecting 7044, a window titled setting Configuration for 7044 will
pop up as Fig 2-25 shown.

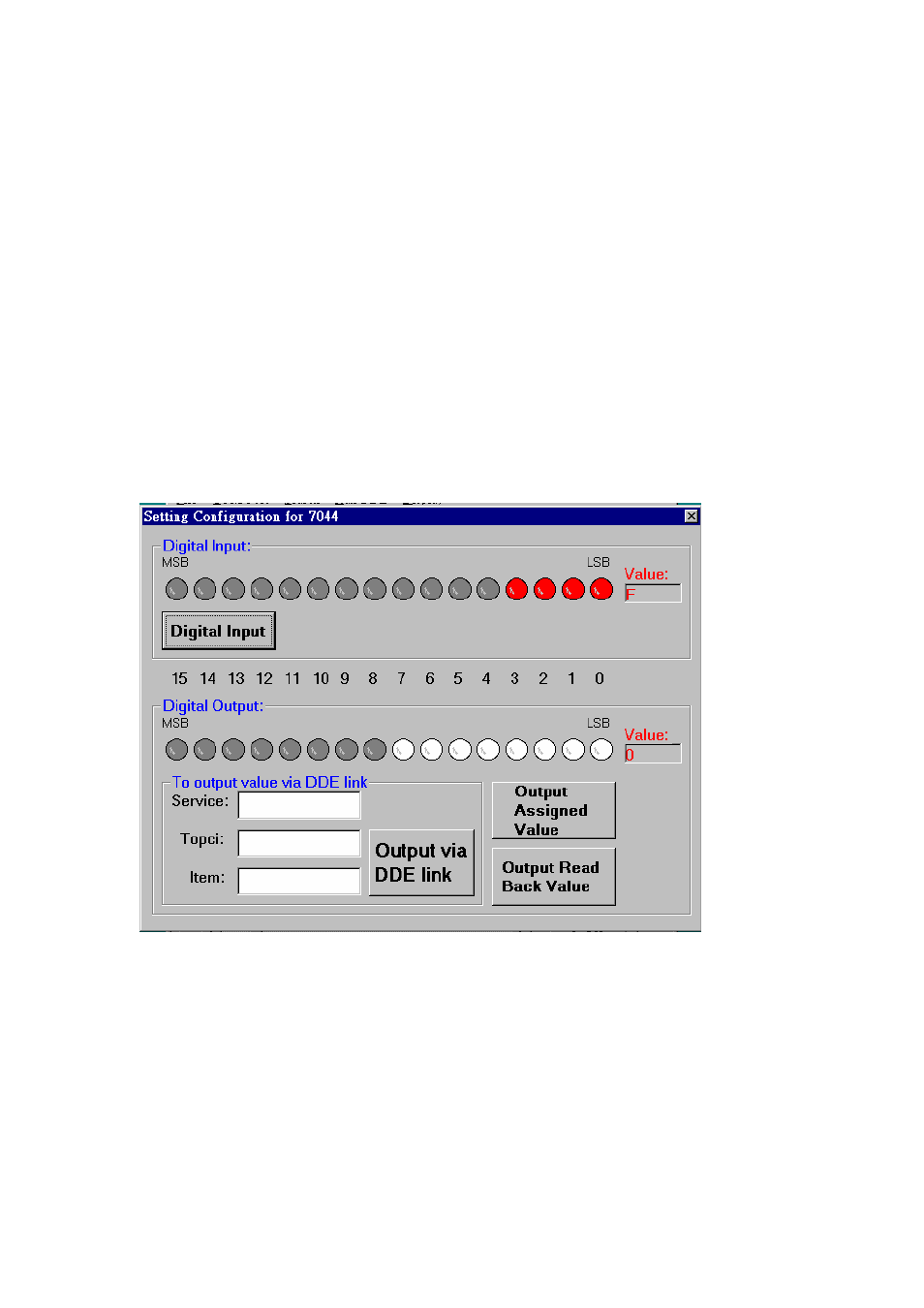

Fig 2-25 The setting Configuration for 7044 window.
This window given some information about the CB-7044 module. Because CB-7044
is digital input/output module. All the portion of Digital Input and Digital Output is
active. The user can set in all portion. And the portion of Digital Input show that there
are 4 digital input channels. Digital Output show that there are 8 digital output
channels. When push Digital Input button in the Digital Input portion. When push
one command button among Output Assigned Value, Output Read Back Value and
