NAP7000D User Manual (Version 1.0) ---- 28

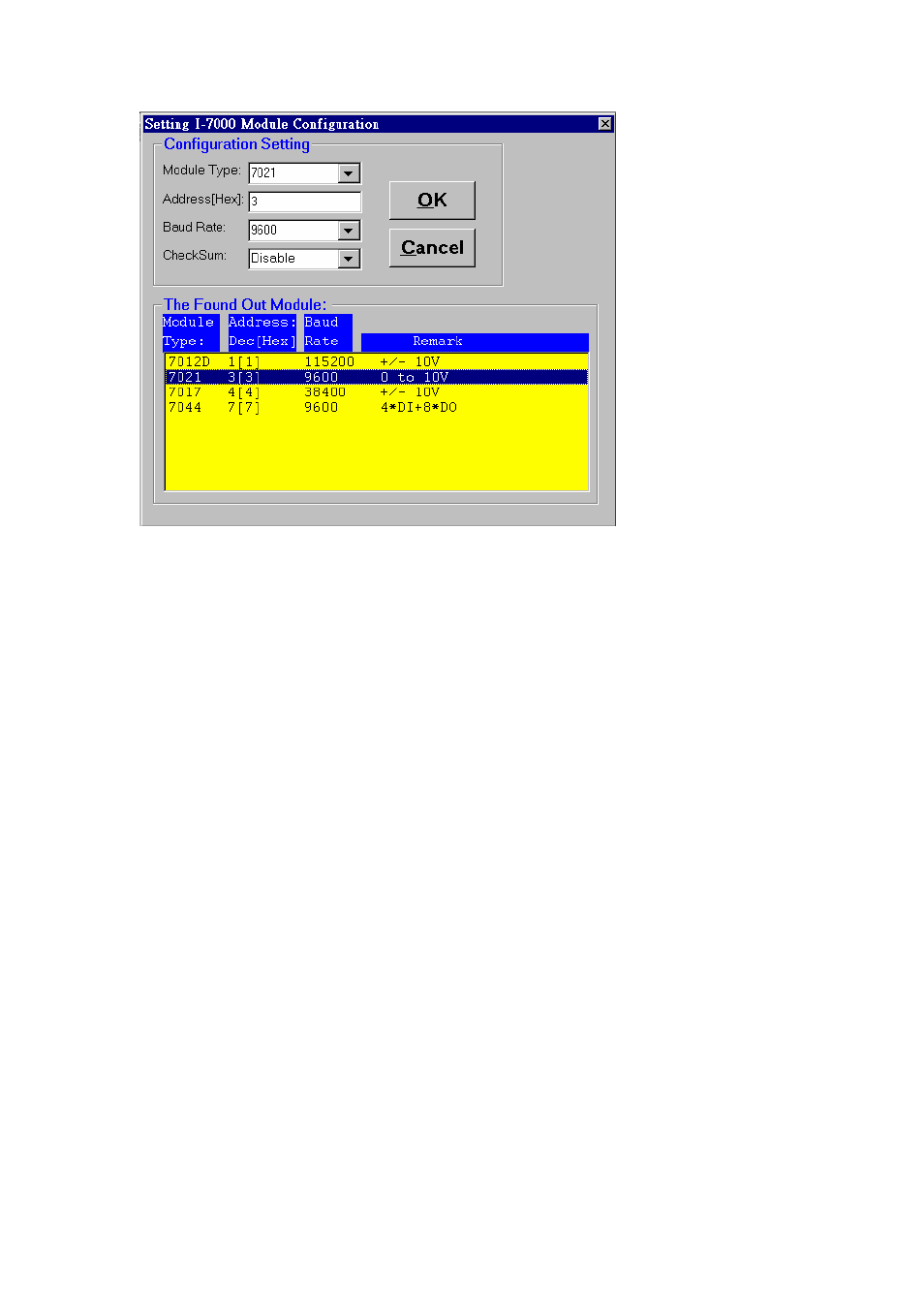

Fig 2-21.

Step 7: when Fig 2-21 display, click OK button to accept the setting.

2.9 Setting CB-7041, CB-7052, CB-

7053

Step1:

Check a ConvN(here N means 0 to 31) to start the setting CB-7000 module

configuration. In this example, the Conv1 is checked.

Step 2:

Select the desired module type as Fig 2-10 shown(method 1 or method 2).

In this case, please select 7041, 7052 or 7053. In this examples, the 7041 is

selected.
