NAP7000D User Manual (Version 1.0) ---- 23
Step 4: Entry the module address for the selected module.
Step 5: Select the exact baud rate in the Baud Rate Combo for the selected module.
Step 6: Select the status of checksum(Disable or Enable). Notice, the status of
checksum must be exact to your physical CB-7000 series module device. If you
select Enable, you must to enable checksum status for CB-7000 module. The default
setting for CB-7000 series module is disable.

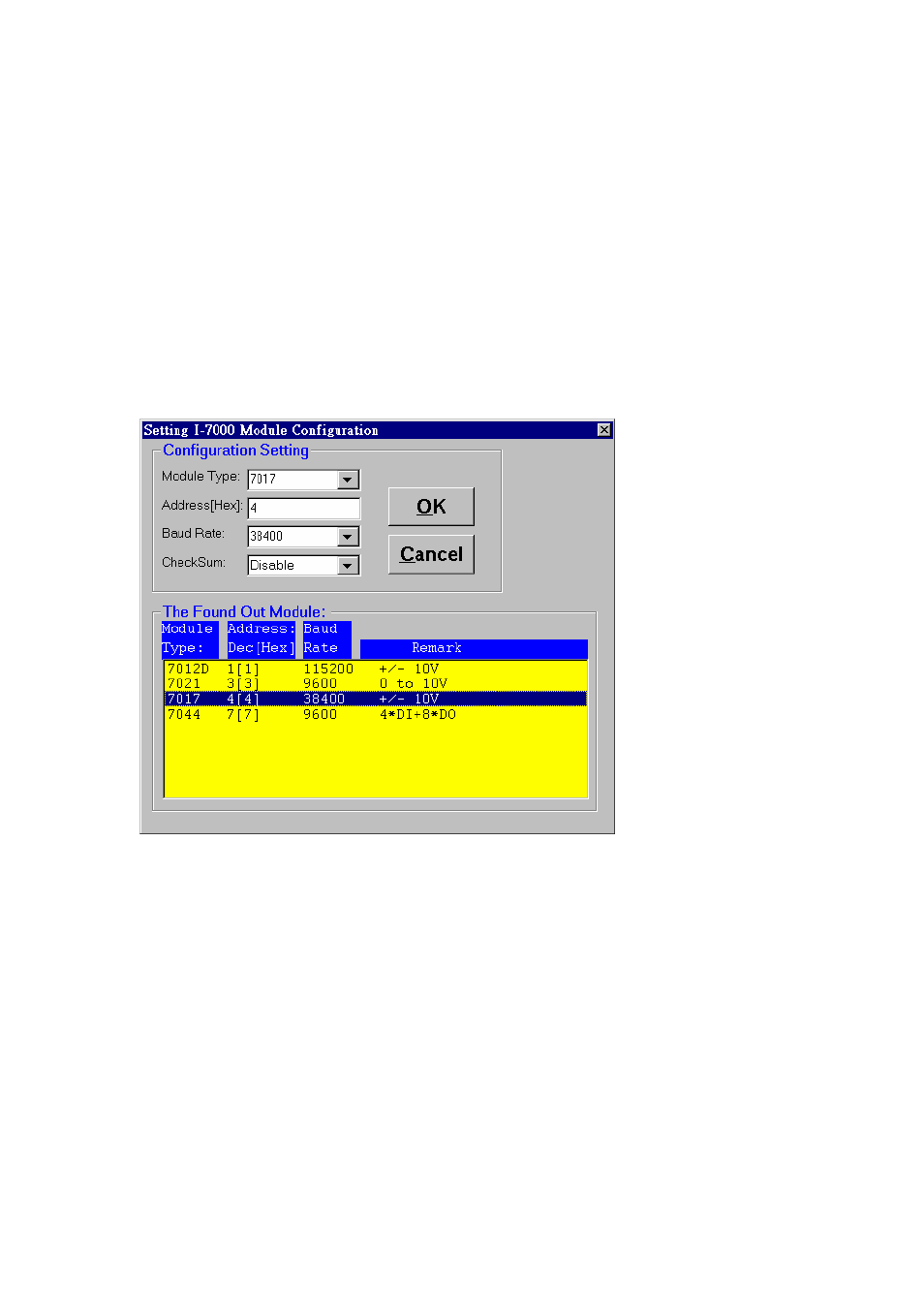

After above six steps, the setting window shown as Fig 2-15.
Fig 2-15 After setting the module configuration.
Step 7: when Fig 2-15 display, click OK button to accept the setting.
