5.
THE DISPLAY’S REAR, D-SUB CONNECTORS

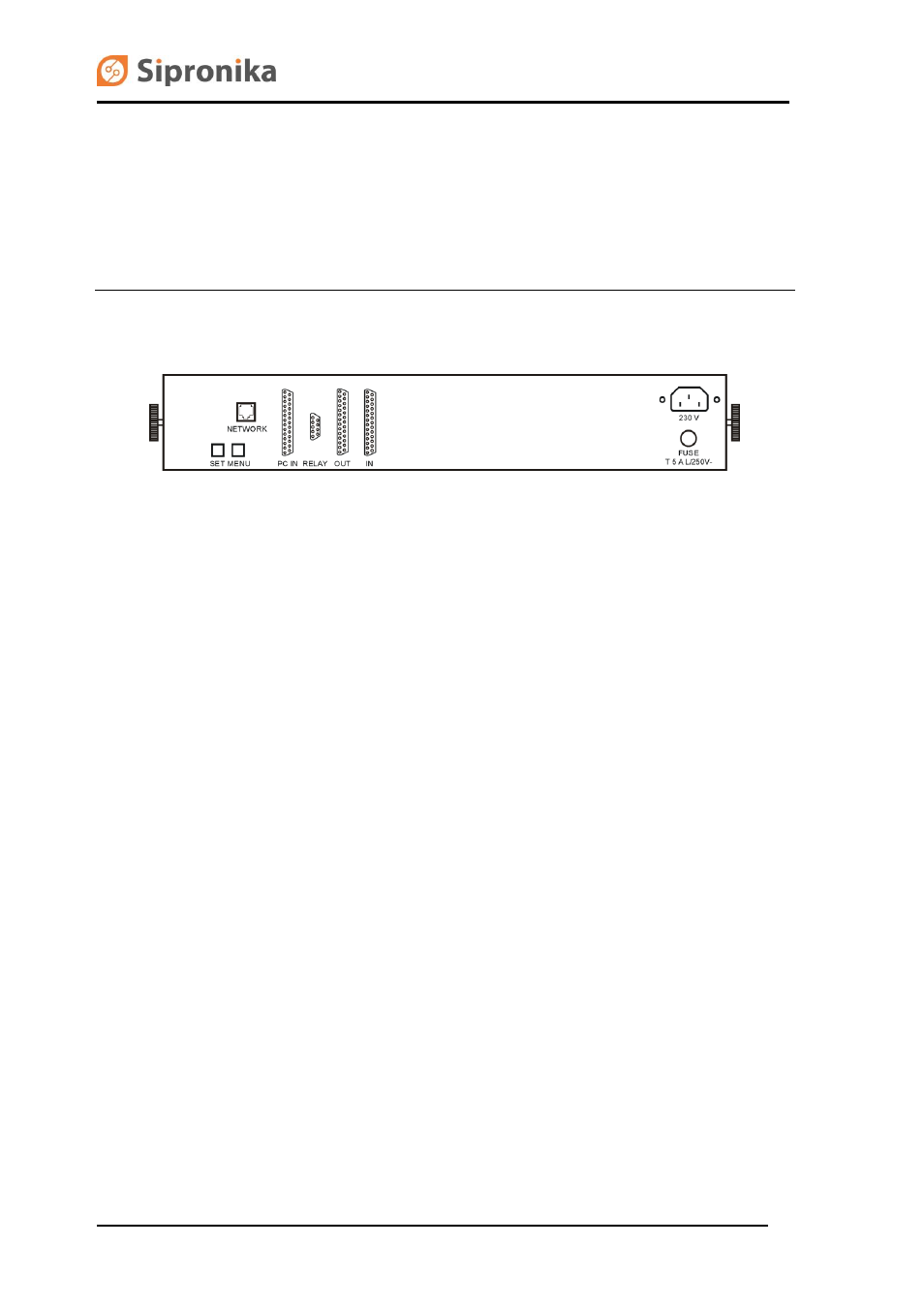

Fig. 7: A view of the display's rear
On the display's rear side there are various connectors and two keys:
NETWORK
Network connector RJ-45, Ethernet 10Base-T/100Base-TX
OUT Output for the time and message telegrams: RS-232 and 20 mA - current loop;
connector: DB25,
MENU, SET
Keys for performing various settings of the display: time, brightness, language,
time zone, network settings
…
RELAY
Output with the terminals of a relay which can close the circuit when the
messages are displayed; connector: DB 9
FUSE
Fuse – 5 A, slow blow;
230 V Euro-socket for the mains connection;
PC IN , IN Auxiliary inputs – for service purposes only;
