28

INSTALLATION (cont.)

Supplied Wall Mounted Controller Connection (cont.)

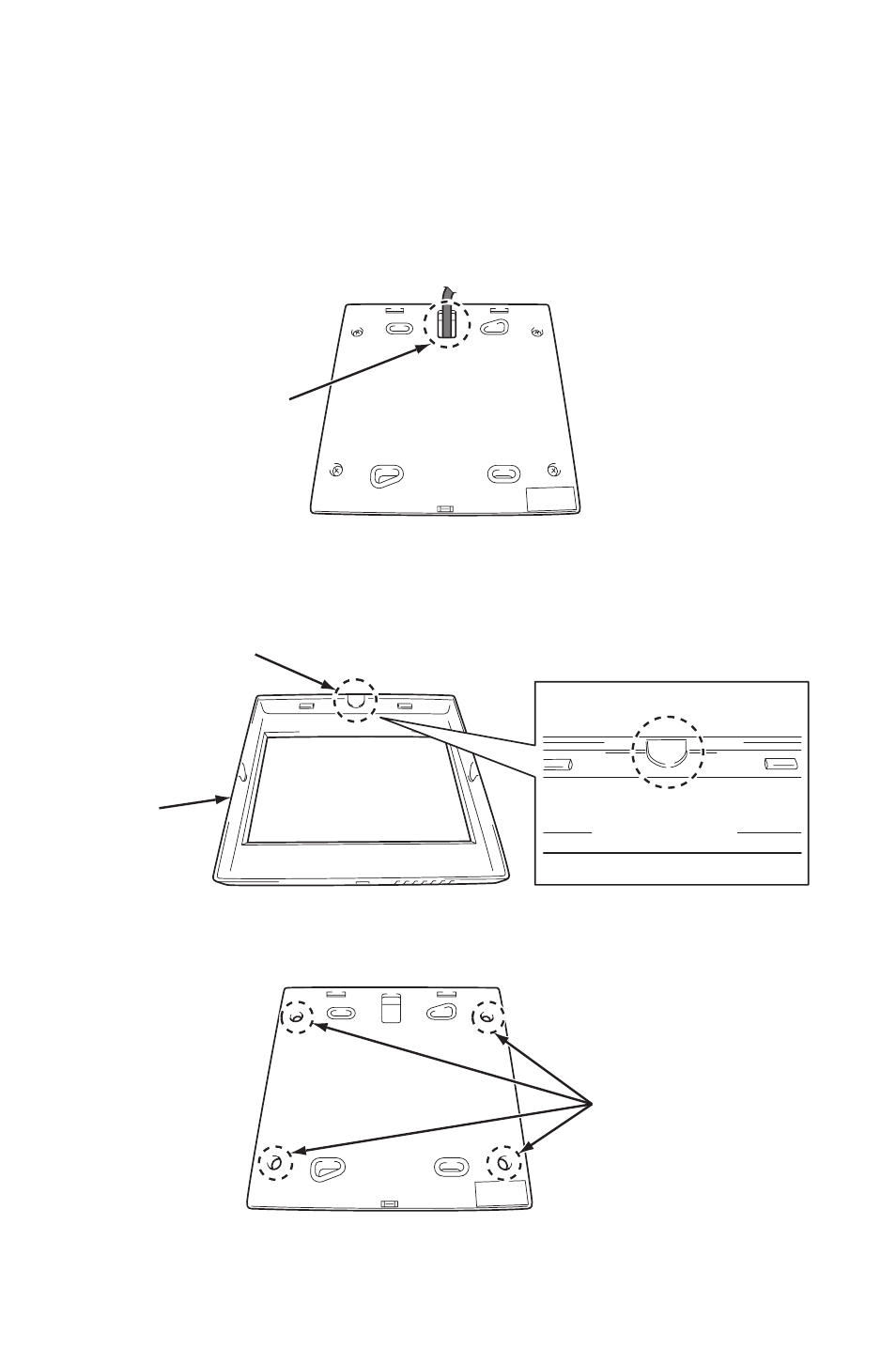

4. Depending on installation conditions, there are two methods to insert the

shield wire through the back cover of the controller.
Method A)

Insert the shield wire through the hole of the back cover.

Method B)

Break the dent portion of the front cover by tool (pliers, etc.). Remove the dent

portion and insert the shield wire through the hole.

5. Reassemble the controller board to the back cover with four (4) screws.

HOLE

ILL00295-00

FRONT

COVER

DENT PORTION

ILL00296-00

HOLES

ILL00297-00
